Key Features

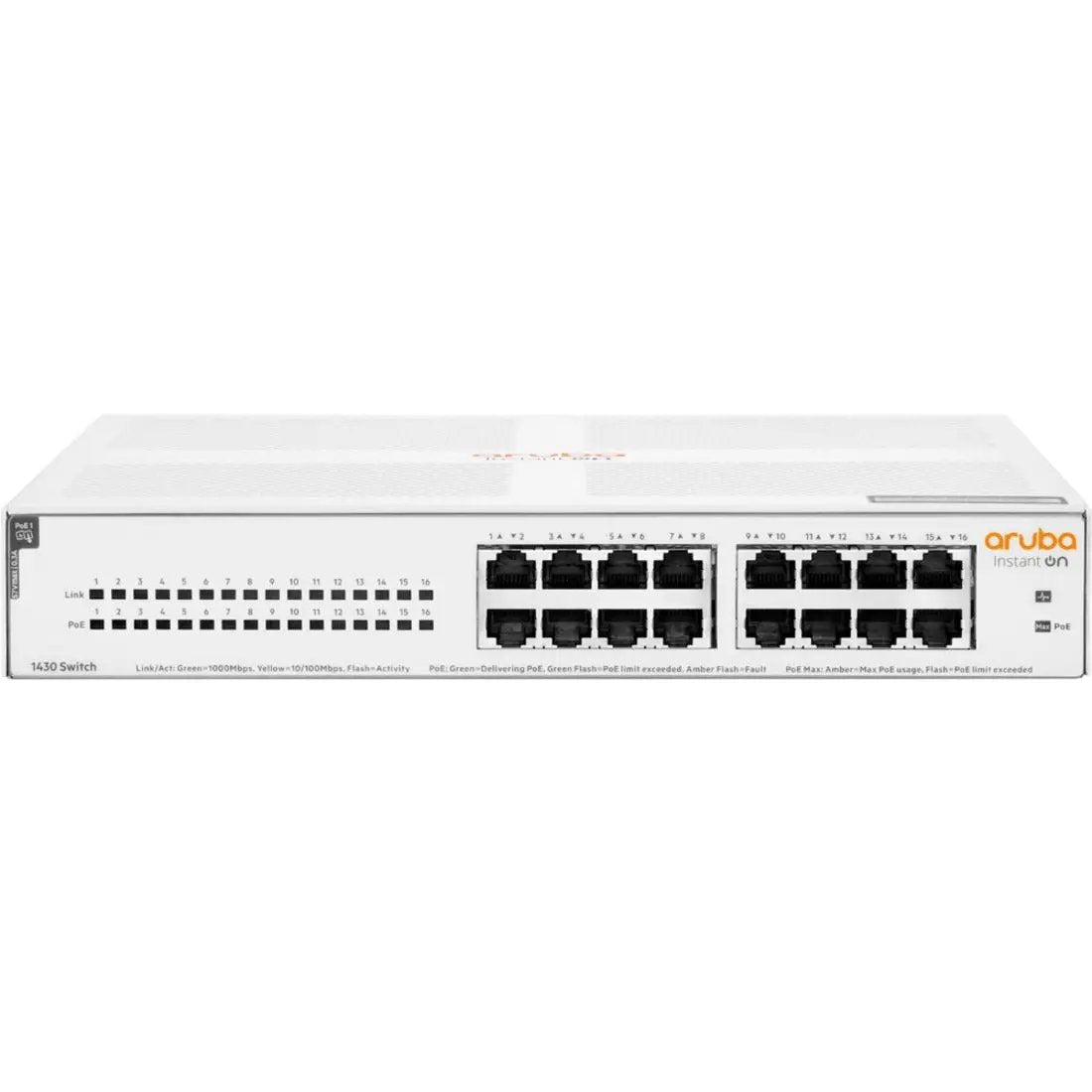

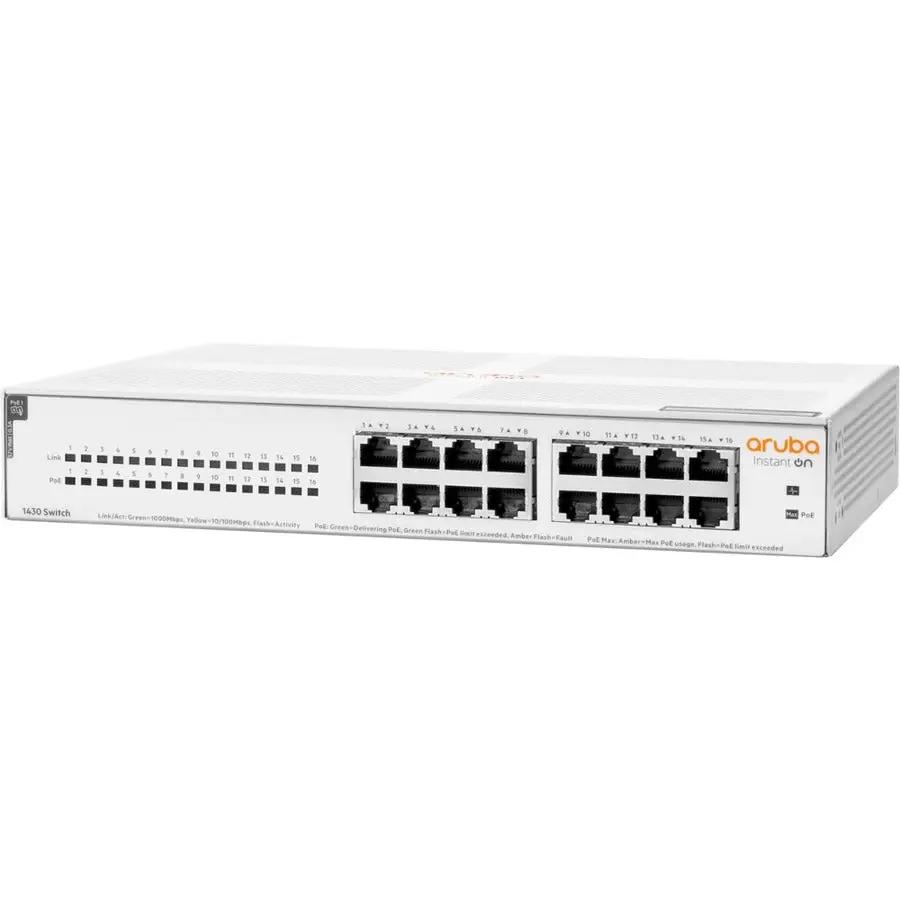

A 16-port Gigabit unmanaged switch that powers access points, IP phones, and other IoT devices from a 124W PoE budget. There is nothing to set up: it runs plug-and-play with fully automated operation, and built-in Quality of Service and flow control keep voice and video traffic moving. Fanless construction with Energy Efficient Ethernet keeps it silent under a desk or in a 1U rack slot.
Tech Specs
- Ports: 16 x Gigabit Ethernet RJ-45
- PoE Ports: All 16 RJ-45 ports
- PoE Standard: IEEE 802.3at (PoE+ Class 4)
- PoE Budget: 124 W
- PoE per Port: Up to 30 W
- Switching Layer: Layer 2
- Management: Unmanaged
- Network Technology: 10/100/1000Base-T
- Network Standard: IEEE 802.3az Energy Efficient Ethernet
- Media Type: Twisted Pair
- QoS: Supported
- Flow Control: Supported
- Cooling: Fanless
- Input Voltage: 230 V AC
- Power Consumption: 147 W
- Rack Height: 1U
- Weight: 4.6 lb
Warranty & Compliance
- Warranty: Lifetime limited
- Support: 24x7 chat support for the entire warranty period
What's in the Box
- Instant On 1430 16G Class4 PoE 124W Switch
- 2-post rack kit
- Brackets
