Key Features

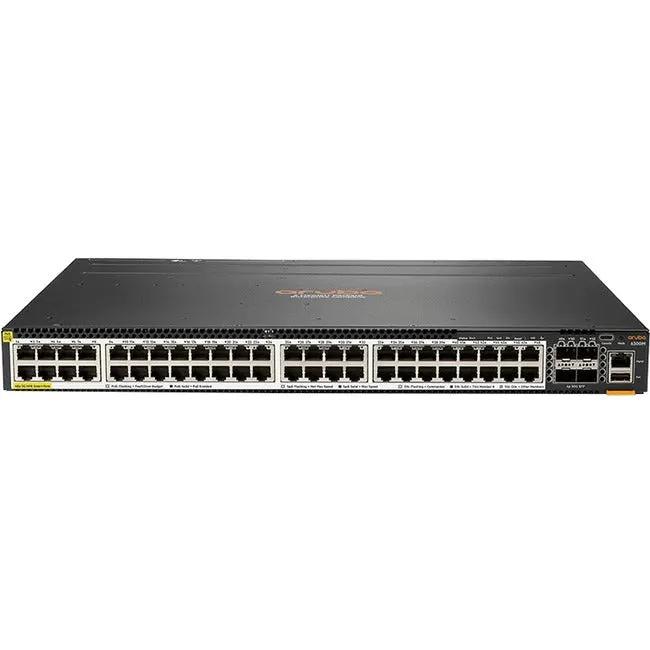

The Aruba CX 6300M is a stackable Layer 3 managed switch built for enterprise campus access, aggregation, and data-center top-of-rack roles. Its 48 HPE Smart Rate ports auto-negotiate up to 5GbE and deliver Class 6 PoE++ for high-power access points, cameras, and IoT endpoints, while four SFP56 cages carry 50GbE uplinks. AOS-CX adds dynamic routing with BGP, OSPF, EVPN, VXLAN, and VRF, plus Aruba Dynamic Segmentation and the Network Analytics Engine.
Tech Specs
- Access Ports: 48 x HPE Smart Rate RJ-45
- Access Port Speed: 5GbE
- Uplink Ports: 4 x SFP56
- Uplink Speed: 50GbE
- PoE Standard: IEEE 802.3bt (Class 6)
- PoE Power per Port: Up to 60 W
- Switching Layer: Layer 3 with dynamic routing
- Routing Protocols: BGP, OSPF, EVPN, VXLAN, VRF
- Switching Capacity: 880 Gbps
- Forwarding Throughput: 660 Mpps
- Stacking: Aruba VSF, up to 10 switches
- Stacking Bandwidth: Up to 200 Gbps
- Management: Fully managed AOS-CX with CLI, mobile app, and NetEdit
- Power Supplies: Modular, ordered separately, redundant supply supported
- Form Factor: 1U rack mountable
Warranty & Compliance
- Warranty: Lifetime limited hardware warranty
- Compliance: WEEE
What's in the Box
- 6300M Ethernet Switch
- 2-post Rack Kit
