Key Features

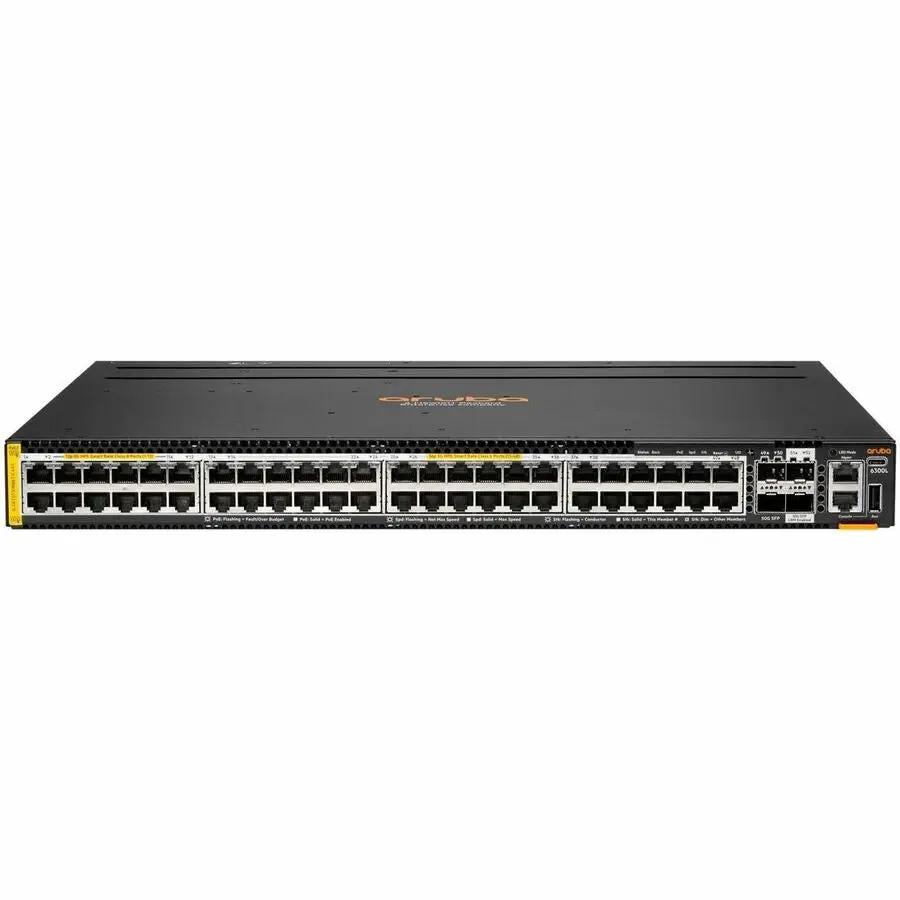

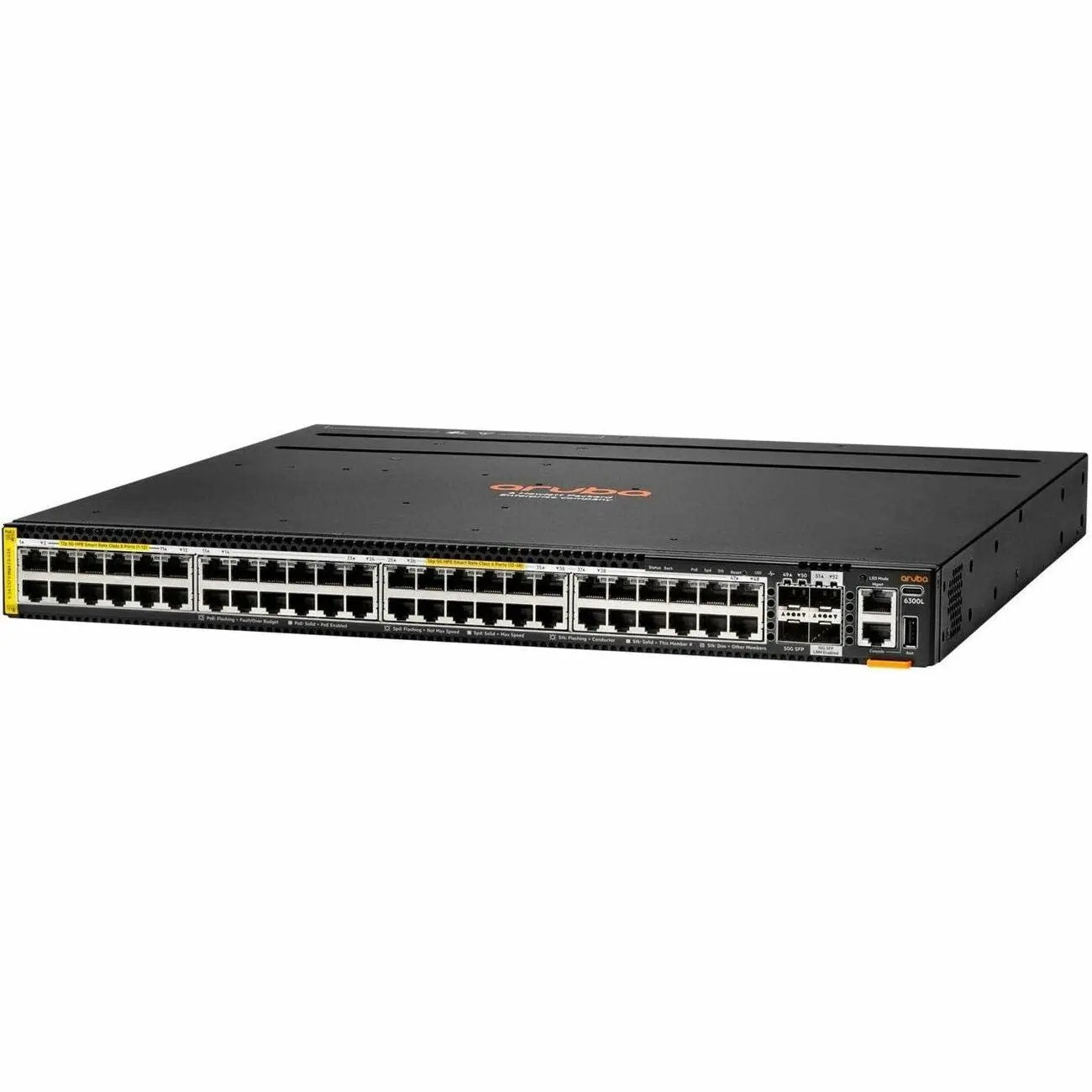

The Aruba CX 6300L is a 1U access switch for enterprise campus and branch wiring closets. Its 48 Smart Rate ports auto-negotiate up to 5GbE and deliver high-power PoE to access points, cameras, and IoT endpoints, while two 50G SFP56 and two 10G SFP+ ports carry aggregated traffic upstream. AOS-CX adds the Network Analytics Engine, Dynamic Segmentation, and VSF stacking of up to 10 switches for policy-driven growth.
Tech Specs
- Ports: 48 x Smart Rate 5GbE (RJ-45)
- Uplinks: 2 x 50G SFP56
- Additional Uplinks: 2 x 10G SFP+ LRM
- PoE Standard: IEEE 802.3bt (PoE++)
- PoE Ports 1-12: Up to 90W (Class 8)
- PoE Ports 13-48: Up to 60W (Class 6)
- PoE Budget: 2880 W
- Switching Layer: Layer 3 Lite (IPv4 static routing)
- Operating System: AOS-CX
- Stacking: Virtual Switching Framework (VSF), up to 10 switches
- Analytics: Network Analytics Engine
- Segmentation: Dynamic Segmentation across wired and wireless
- Media Type: Optical Fiber
- Power Supplies: Hot-swappable
- Input Voltage: 230 V AC
- Form Factor: 1U rack-mountable
- Weight: 12.06 lb
Buying for your business?
Need volume pricing or a formal quote? Send us the quantity you're after and we'll reply with firm pricing and availability within one business day.
