Key Features
The CX 6200F 12G is a Layer 3 access switch for campus and branch edges. Twelve Gigabit Class 4 PoE+ ports share a 139 W budget, while two Gigabit RJ-45 uplinks and two 10 Gigabit SFP+ slots carry traffic upstream. Static and Access OSPF routing run alongside ACLs and QoS, and up to eight switches stack as a single VSF virtual switch managed from Aruba Central.
Tech Specs
- Access Ports: 12 x Gigabit Ethernet RJ-45
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Class: Class 4, up to 30 W per port
- PoE Budget: 139 W
- RJ-45 Uplinks: 2 x Gigabit Ethernet
- SFP+ Uplinks: 2 x 10 Gigabit Ethernet
- Switching Layer: Layer 3
- Routing: Static and Access OSPF
- Stacking: VSF, up to 8 switches
- Access Control: ACLs
- Quality of Service: Supported
- Segmentation: Aruba Dynamic Segmentation
- Monitoring: Aruba Network Analytics Engine
- Management: Aruba Central, Aruba CX Mobile App, and Aruba NetEdit
- Network Technology: 10GBase-X
- Mounting: Wall mountable
- Cooling: Fanless
- Power Input: 230 V AC
- Power Consumption: 23 W
- Weight: 7.14 lb
Warranty & Compliance
- Warranty: Limited lifetime
What's in the Box

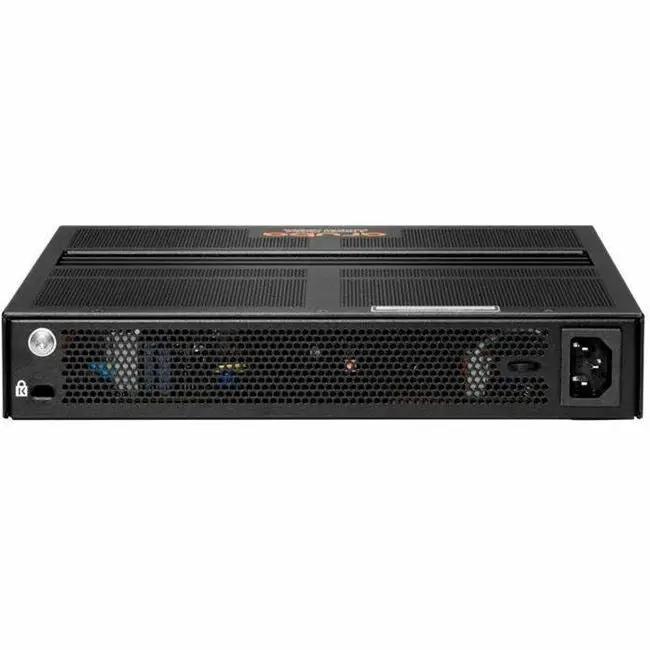

- 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch
- Rack mount kit
