Key Features
This Layer 3 access switch delivers 24 Gigabit PoE+ ports and four SFP+ uplinks for campus, branch, and small business edges. A 370W PoE budget supplies up to 30W per port for access points, cameras, and IP phones. Built on the AOS-CX operating system with static and OSPF routing, it stacks up to eight units over its built-in SFP ports for straightforward growth.
Tech Specs
- Ports: 24 x Gigabit RJ-45
- Uplink Ports: 4 x SFP+
- Uplink Speed: 1GbE or 10GbE per slot
- PoE Ports: 24
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Class: Class 4, up to 30 W per port
- PoE Budget: 370 W
- Switching Layer: Layer 3
- Routing: Static routing and Access OSPF (OSPFv2 and OSPFv3)
- Operating System: AOS-CX
- Stacking: VSF, up to 8 members
- Network Technology: 10GBase-X
- Form Factor: 1U rack mount
- Power Input: 230 V AC
- Power Consumption: 65 W
Warranty & Compliance
- Warranty: Limited lifetime warranty
- Compliance: WEEE
What's in the Box

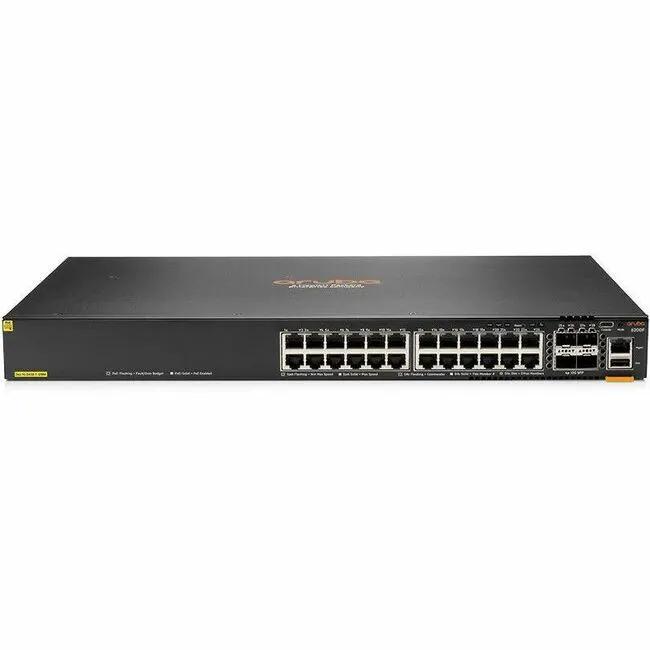

- CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch
- 2-post rack kit
