Key Features

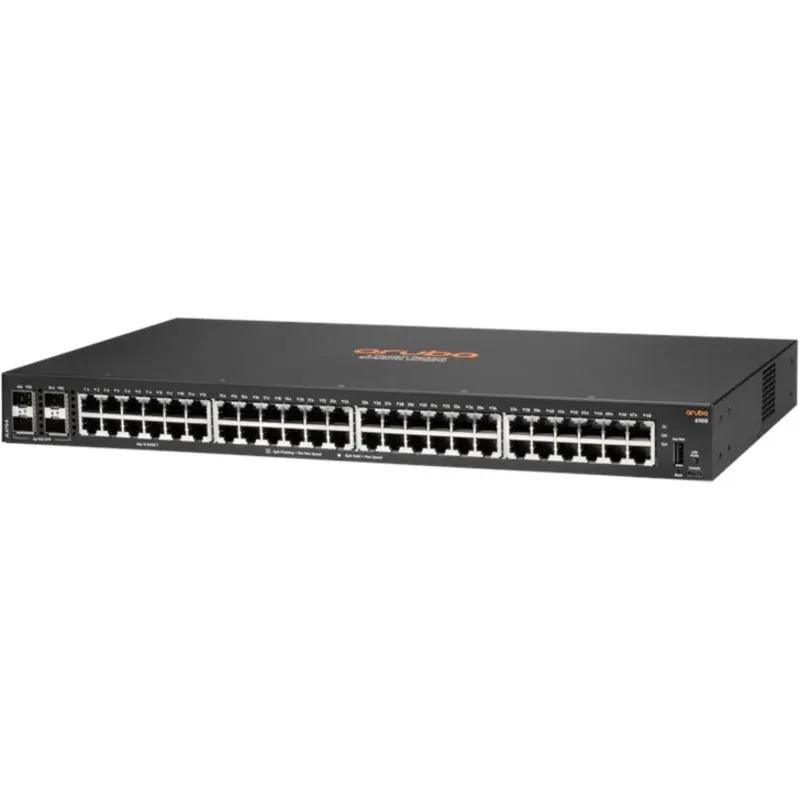

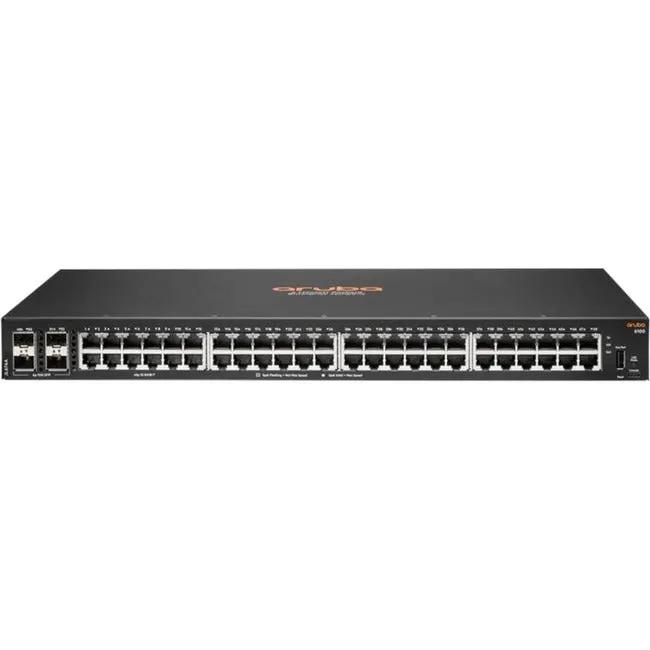

The Aruba CX 6100 48G 4SFP+ is a wired access switch for branch offices and wiring closets, pairing 48 Gigabit access ports with four 1G/10G SFP+ uplinks. It runs AOS-CX, so ACLs, QoS, IPv6 and static routing are configured the same way as on the rest of the CX family, from the CLI, the web interface, or Aruba Central. REST APIs and NetEdit let the configuration be pushed and verified programmatically instead of switch by switch.
Tech Specs
- Access Ports: 48 x Gigabit Ethernet (RJ-45)
- Uplinks: 4 x 1G/10G SFP+
- Switching Layer: Layer 3
- Routing: Static routing
- Operating System: AOS-CX
- Management: CLI, web interface, and Aruba Central
- Automation: REST APIs and Aruba NetEdit
- Access Control: ACLs
- Traffic Management: QoS
- IPv6: Supported
- PoE: Not supported
- Network Technology: 10GBase-X
- Media Type Supported: Optical Fiber
- Form Factor: 1U rack mountable
- Mounting: Rack and wall mountable
- Power Supplies: 1 installed, 1 supported
- Power Source: AC
- Power Consumption: 44.20 W
- Weight: 7.54 lb
Warranty & Compliance
- Warranty: Lifetime Limited
- Environmental Compliance: WEEE
What's in the Box
- 6100 48G 4SFP+ Switch
- Mounting Brackets
