Description

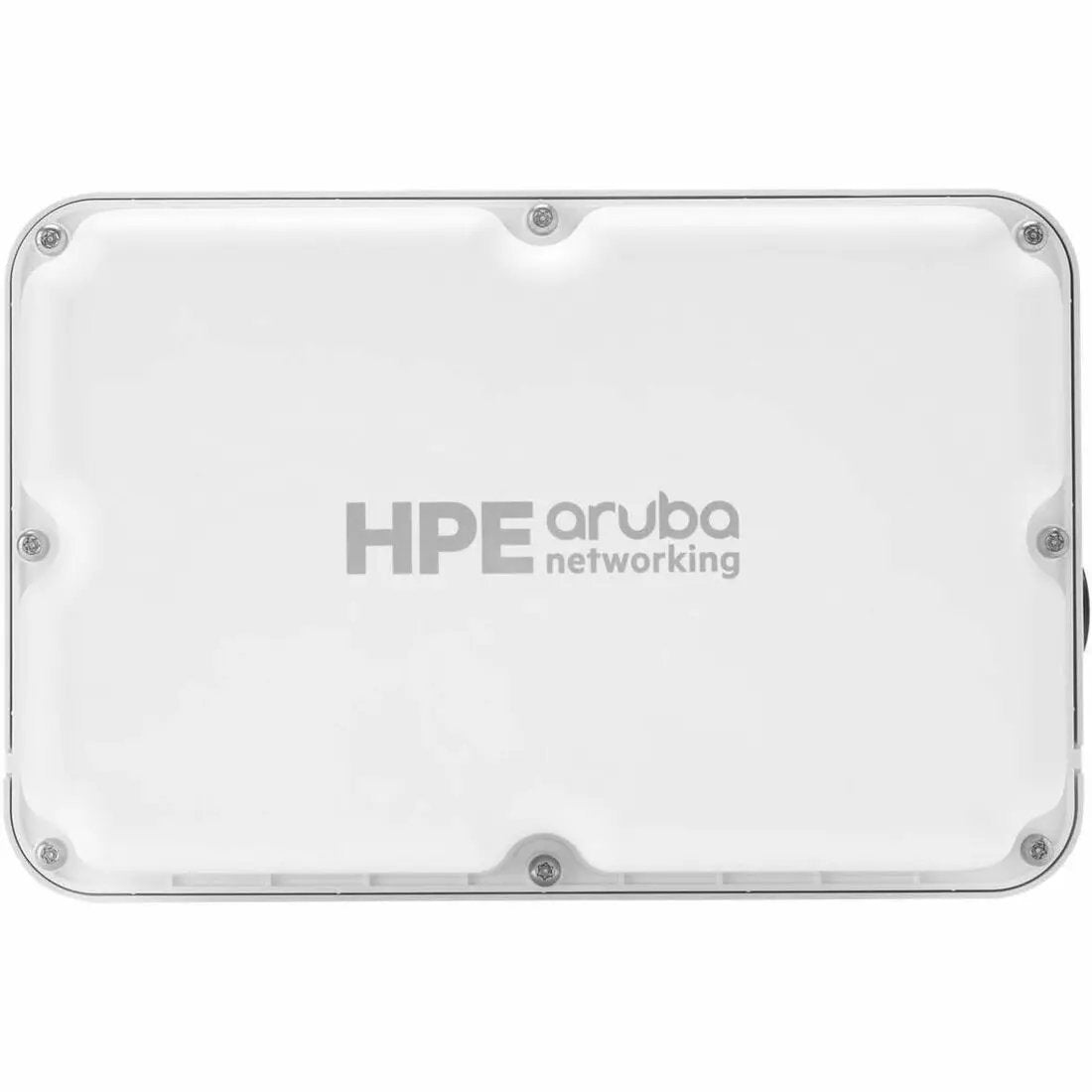

The Aruba AP-765 is a tri-band Wi‑Fi 7 access point designed for indoor and outdoor deployments, delivering up to 5.8 Gbps of aggregate throughput. It integrates Bluetooth and Zigbee radios for IoT devices and is managed via Aruba Central with Wireless OS 10 for AI-driven automation and unified visibility across wired, wireless, and IoT connections.
Tech Specs
- Wi‑Fi Standard: Wi‑Fi 7 (IEEE 802.11be)
- Backward Compatibility: 802.11a/b/g/n/ac/ax/be
- Bands: Tri-band (2.4 GHz, 5 GHz, 6 GHz)
- Maximum Throughput: Up to 5.8 Gbps aggregate
- Radio Architecture: Three dedicated radios; 5 GHz and 6 GHz support 2x2 MU‑MIMO; 6 GHz can operate in 4x4 mode
- Channel Width: Up to 160 MHz channels (6 GHz)
- Bluetooth: Bluetooth 5.4
- Zigbee: Yes
- PoE PD Port: Yes
- USB Standard: USB 3.0 Type A
- Management Port: Yes
- Management: Aruba Central; Wireless OS 10
- Environment: Indoor/Outdoor; IP66/IP67 rated
- HazLoc Readiness: HazLoc variants available
- Location Services: Location-aware; observability across third-party wired/wireless assets
Warranty & Compliance
- Warranty: Limited lifetime warranty
- Ingress Protection: IP66/IP67
- HazLoc Compliance: HazLoc variants available for hazardous environments
