Description

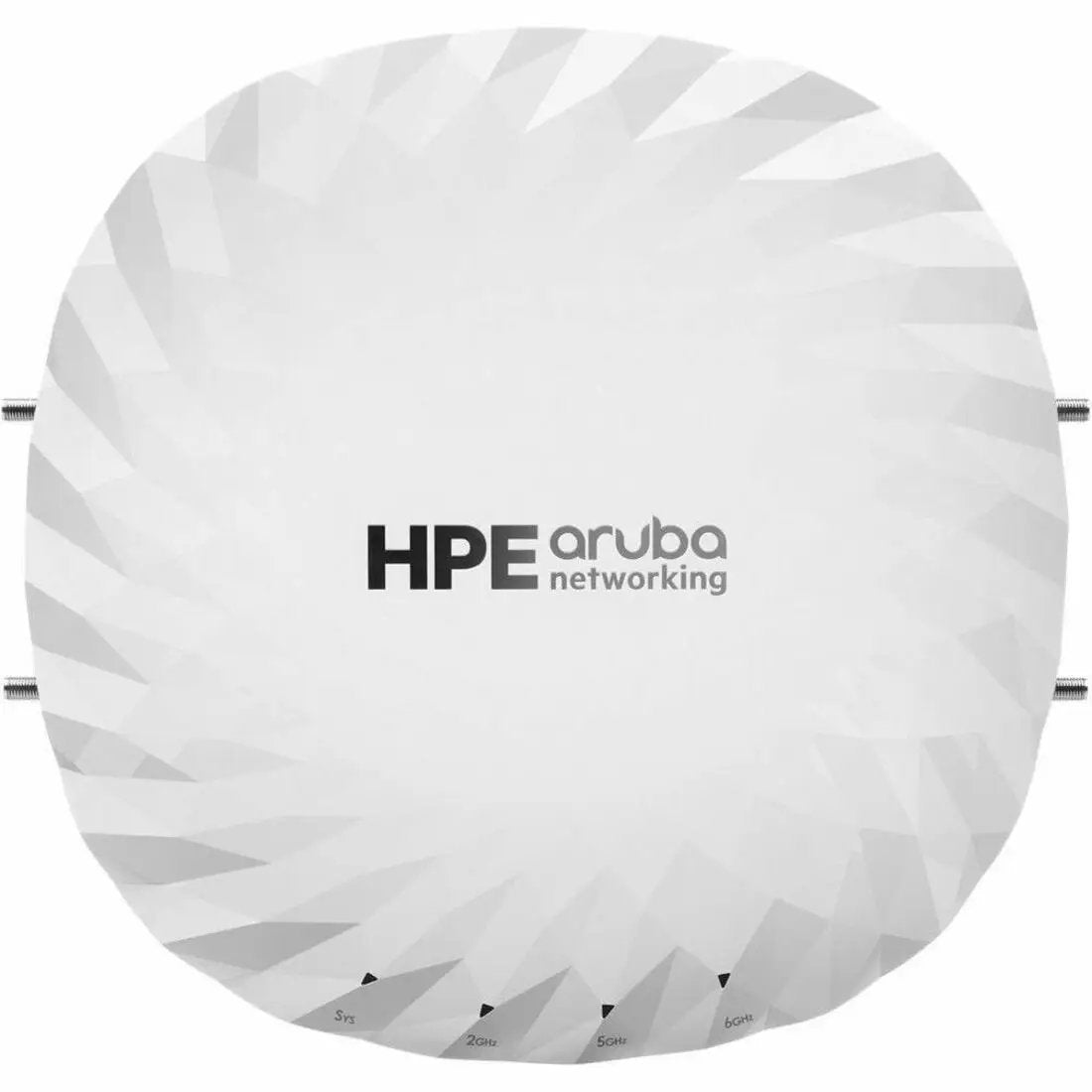

The Aruba AP-734 is a tri-band Wi‑Fi 7 campus access point designed for dense user and IoT environments. It combines 2.4, 5, and 6 GHz operation with Ultra Tri‑Band filtering, AI‑driven insights, and unified management via AOS‑10 and Aruba Central for high-capacity connectivity across large campuses.
Tech Specs
- Wi‑Fi Standard: IEEE 802.11be (Wi‑Fi 7)
- Bands: 2.4 GHz, 5 GHz, 6 GHz
- Radio/Channels: 3 radios with 2x2 MIMO per radio
- Max Throughput: Up to 9.3 Gbps tri‑band aggregate; up to 14.4 Gbps in dual 6 GHz mode
- Channel Bandwidth: Wide 320 MHz channels (6 GHz)
- Multi‑Link Operation (MLO): Supported
- Modulation: 4096-QAM
- Ultra Tri‑Band Filtering: Integrated UTB
- Port Configuration: 2 × Ethernet ports
- PoE PD Port: Yes
- Management Port: Yes
- USB Standard: USB 2.0
- Bluetooth: Bluetooth 6
- Encryption: WPA2-MPSK
- Protocol Support: LACP
- Power Consumption: 8 W
- Environment/Deployment: Indoor/Outdoor
- Management: AOS‑10 and Aruba Central
- Location Services: Location‑aware capabilities
