Description

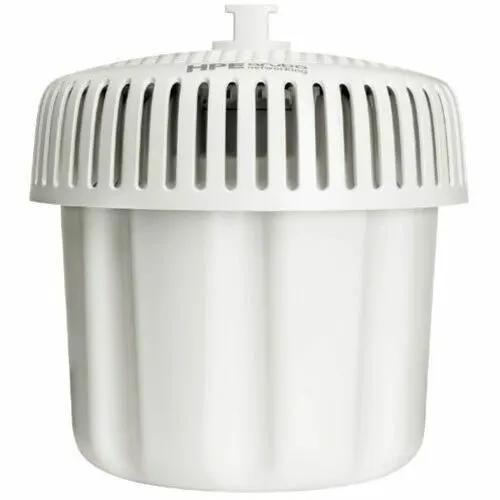

The Aruba AP-677 is an outdoor Wi‑Fi 6E access point in the 670 Series, supporting tri-band operation with up to 3.9 Gbps aggregate data rate, 2.5 GbE Ethernet, and IP66/IP67 protection. Integrated Bluetooth and Zigbee radios support IoT and device management across outdoor sites, industrial facilities, and hazardous-location environments. HazLoc (670EX) models are available.
Tech Specs
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
- Wi‑Fi Generation: Wi‑Fi 6E
- Bands: Tri-Band (2.4 GHz / 5 GHz / 6 GHz)
- Max Data Rate: Up to 3.9 Gbps aggregate
- MIMO Technology: Tri-radio 2×2:2
- Antenna Form Factor: Internal
- Antenna Count: Total 2; Internal 2
- Port Configuration: 2 × RJ-45
- Ethernet Technology: 2.5 Gigabit Ethernet
- USB: Yes
- USB Standard: USB 2.0
- Management Port: Yes
- Bluetooth Standard: Bluetooth 5
- Zigbee Radios: Integrated
- Encryption Standard: WPA2
- PoE PD Port: Yes
- Form Factor: Outdoor; Pole-mountable
- Ingress Protection: IP66/IP67
- Power Consumption: 11 W
Warranty & Compliance
- Warranty: Limited lifetime warranty
- HazLoc Compliance: 670EX models available
- TAA Compliant: Versions available
