Description

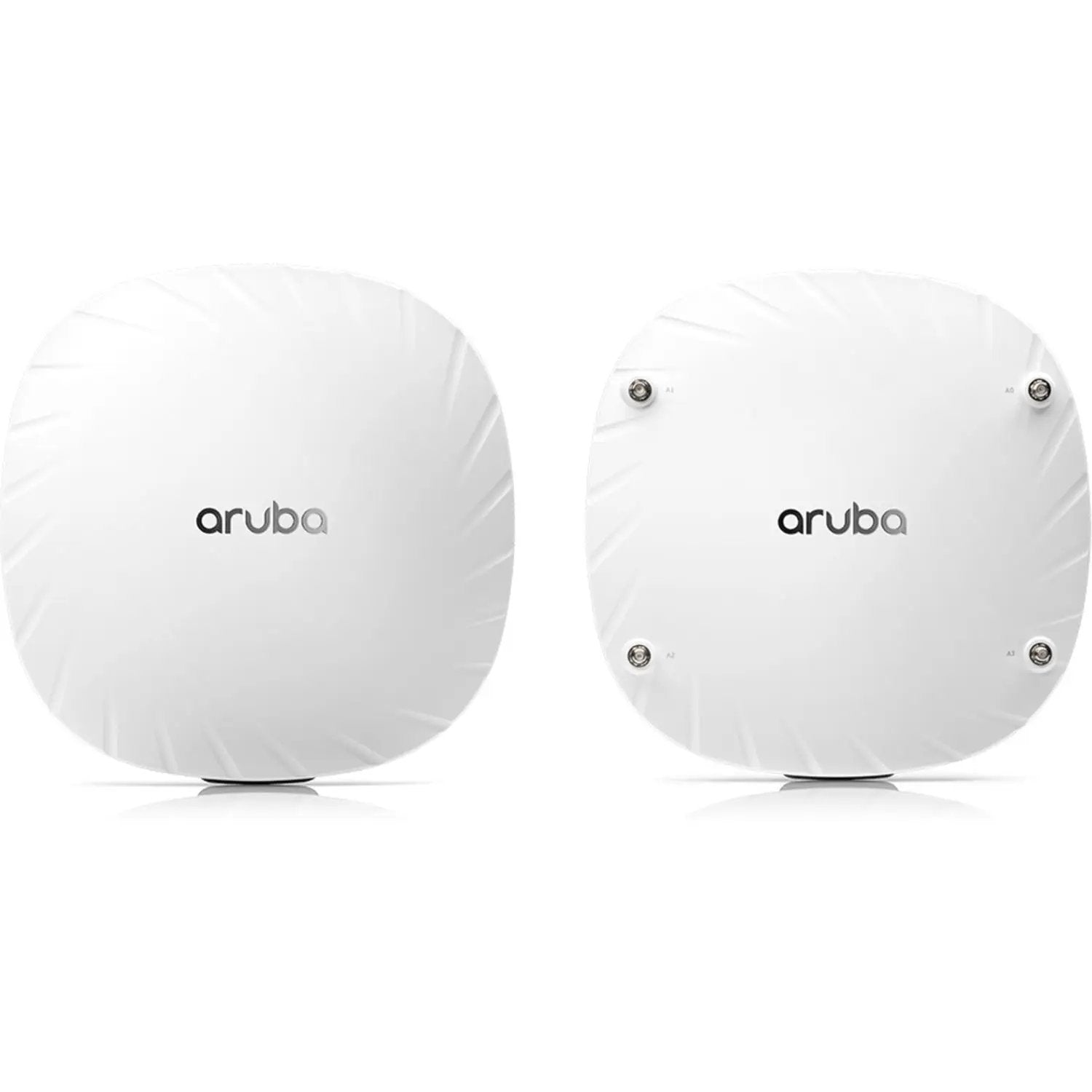

Aruba AP-535 delivers high-density Wi‑Fi 6 performance for campuses, hotels, and enterprise spaces. It combines 4×4 MIMO with OFDMA and MU‑MIMO to support multi‑device environments, delivering up to 3.55 Gbps aggregate throughput across 2.4 GHz and 5 GHz bands, with PoE and versatile mounting options (wall, ceiling, and rail).
Tech Specs
- Port Configuration: 2 × RJ-45 Ethernet
- PoE: Enabled (2 ports)
- Wireless Standard: 802.11ax (Wi‑Fi 6)
- Aggregate Data Rate: Up to 3.55 Gbps
- 5 GHz Data Rate: Up to 2.4 Gbps
- 2.4 GHz Data Rate: Up to 1.15 Gbps
- Channel Bandwidth: 5 GHz up to 160 MHz; 2.4 GHz up to 40 MHz
- Modulation: 1024‑QAM
- Antenna Configuration: 4 × internal
- MIMO: 4×4 with up to 4 spatial streams per band
- Client Capacity: Up to 1,024 associated clients per radio
- Radio Bands: 2.4 GHz and 5 GHz
- Bluetooth: Bluetooth 5
- USB: Yes
- Mounting Options: Wall, ceiling, and rail
- Management: Aruba ClientMatch radio management
Warranty & Compliance
- Warranty: Lifetime
