Description

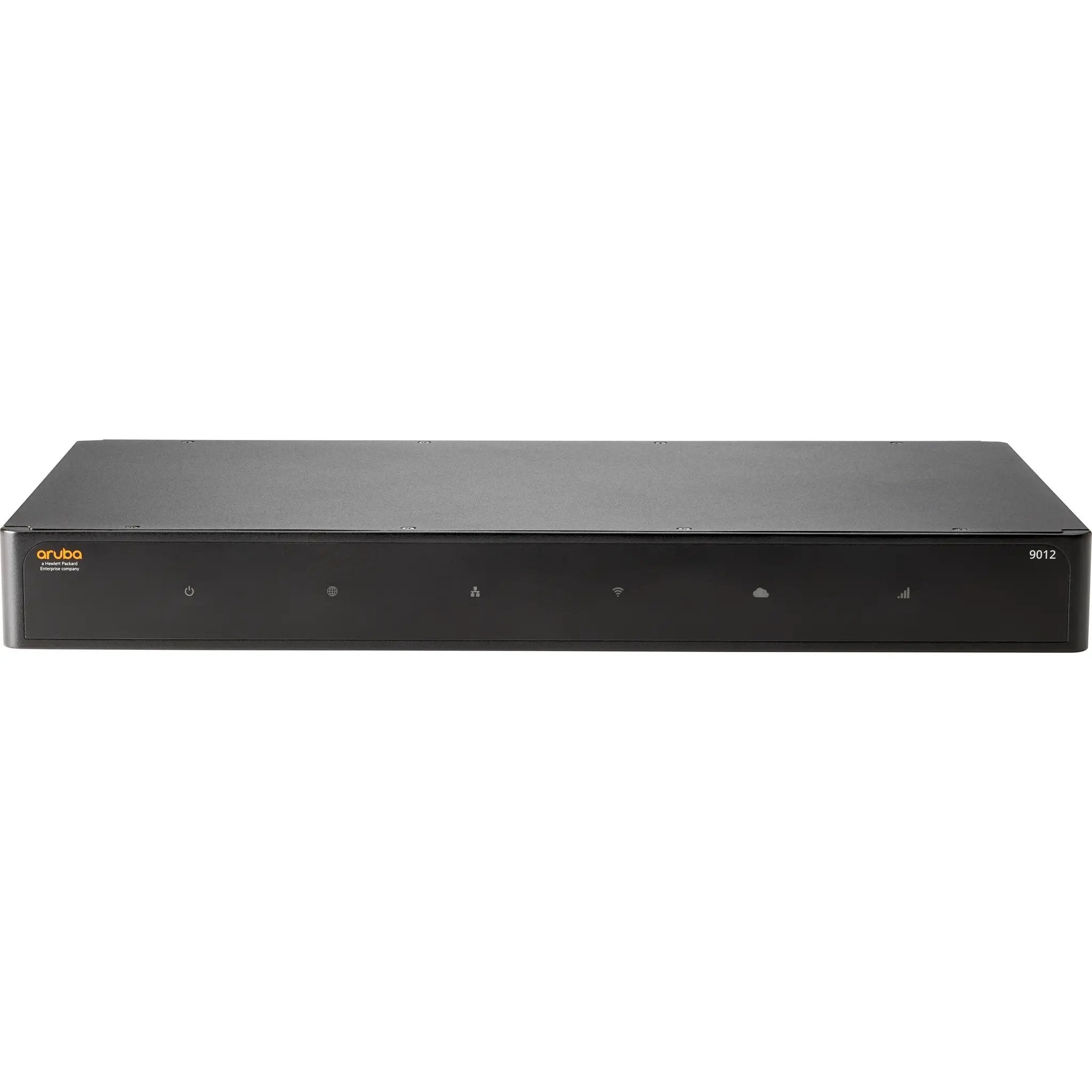

The Aruba 9000 Series 9012 Gateway is a compact, high-performance SD-WAN gateway for branch offices and small campuses. It unifies WLAN, LAN, SD-WAN, and security under Aruba Central cloud management, with up to 6 Gbps firewall throughput and support for up to 2,048 users. Aruba Dynamic Segmentation enforces consistent policies across wired and wireless, while integrated cellular and Bluetooth 5 (IoT) provide flexible, future-ready connectivity.
Tech Specs
- Ports: 12 × RJ-45 (6 × PoE+)
- USB: USB 3.0
- IoT Radio: Bluetooth 5
- Cellular: Integrated
- Firewall Throughput: Up to 6 Gbps
- Capacity: Up to 2,048 users / client devices
- SD-WAN: Out-of-the-box fabric support
- Clustering: Supported
- Security: Stateful firewall, IDS/IPS, Dynamic Segmentation, device profiling
- App Intelligence: Microsoft 365 / Teams / Skype prioritization
- Management: Aruba Central (cloud) + mobile installer app
- Mobility Controller Mode: WLAN/LAN with Dynamic Segmentation (SD-WAN unavailable in this mode)
- Network Technology: 10/100/1000Base-T
- Power Consumption: 160 W
- Form Factor: Rack-mountable
- Weight: 7.54 lb
Warranty & Compliance
- 1-Year Limited Warranty
- RoHS Compliant
