Key Features

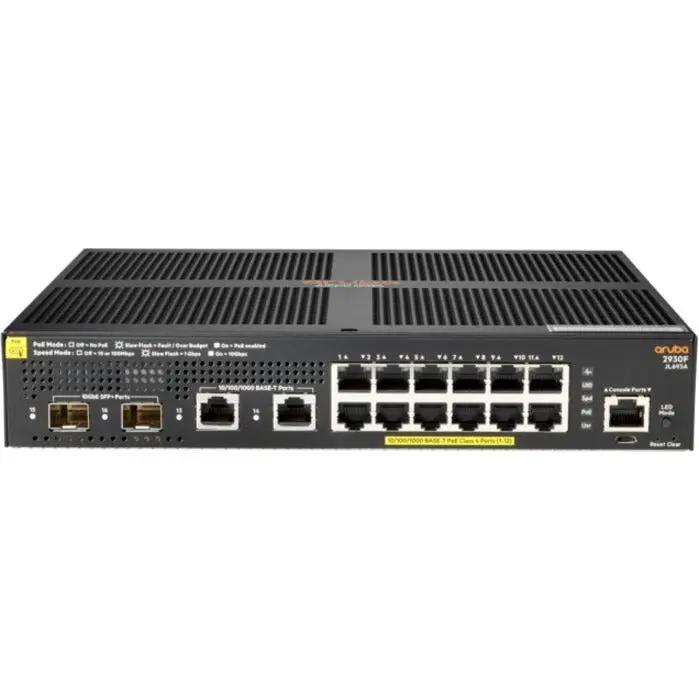

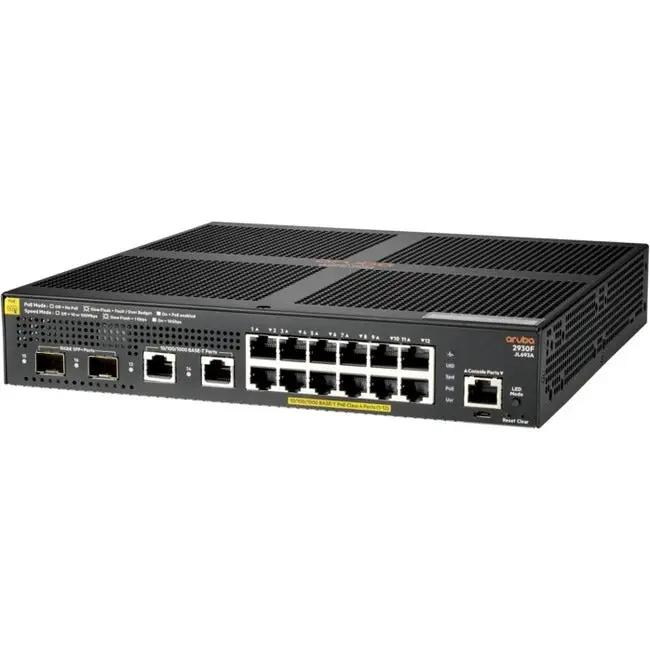

This compact Layer 3 access switch combines 12 Gigabit PoE+ ports with two Gigabit uplinks and two 10GbE SFP+ slots for branch and edge deployments. A 139W PoE budget supplies up to 30W per port for access points, cameras, and IP phones. Static, RIP, and OSPF routing are included with no separate software license.
Tech Specs
- Ports: 12 x Gigabit RJ-45
- PoE Ports: 12
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 139 W
- Max PoE per Port: 30 W
- Uplink Ports: 2 x Gigabit RJ-45
- SFP+ Uplinks: 2 x 1GbE or 10GbE SFP+
- Switching Layer: Layer 3
- Routing: Static routing, RIP, and OSPF (OSPFv2 and OSPFv3)
- Switching Capacity: 68 Gbps
- Throughput: 41.7 Mpps
- Network Technology: 10GBase-X
- Form Factor: Rack-mountable
- Power Consumption: 170 W
Warranty & Compliance
- Warranty: Limited lifetime warranty
