Description

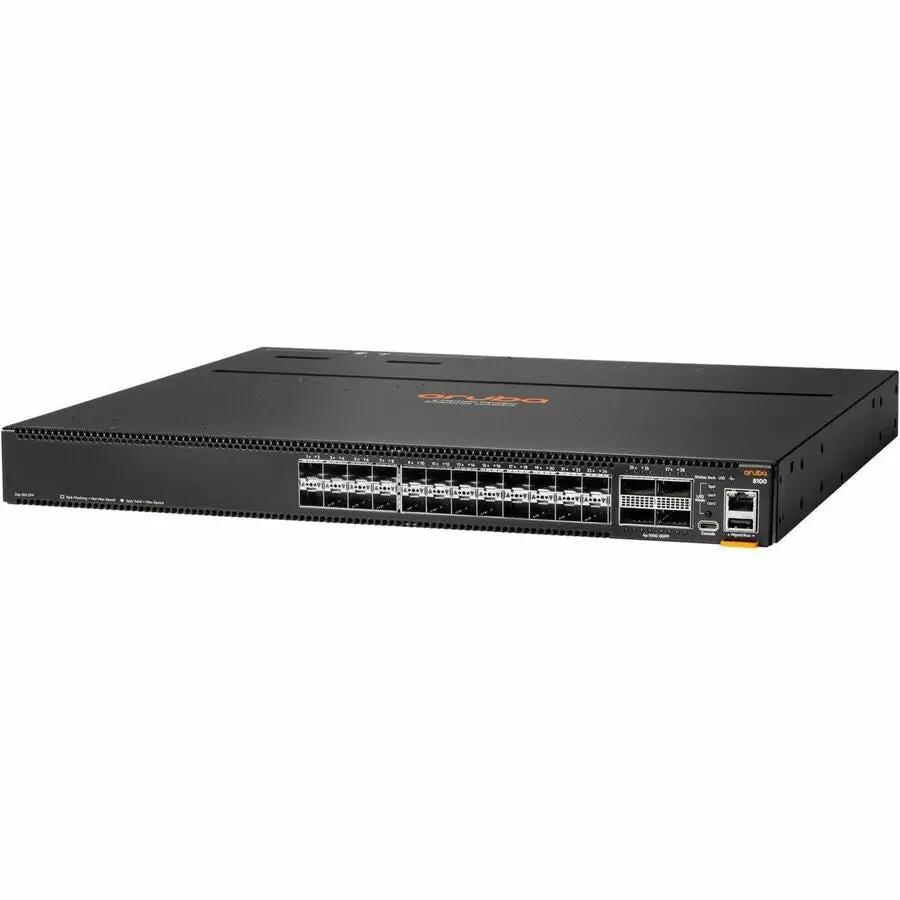

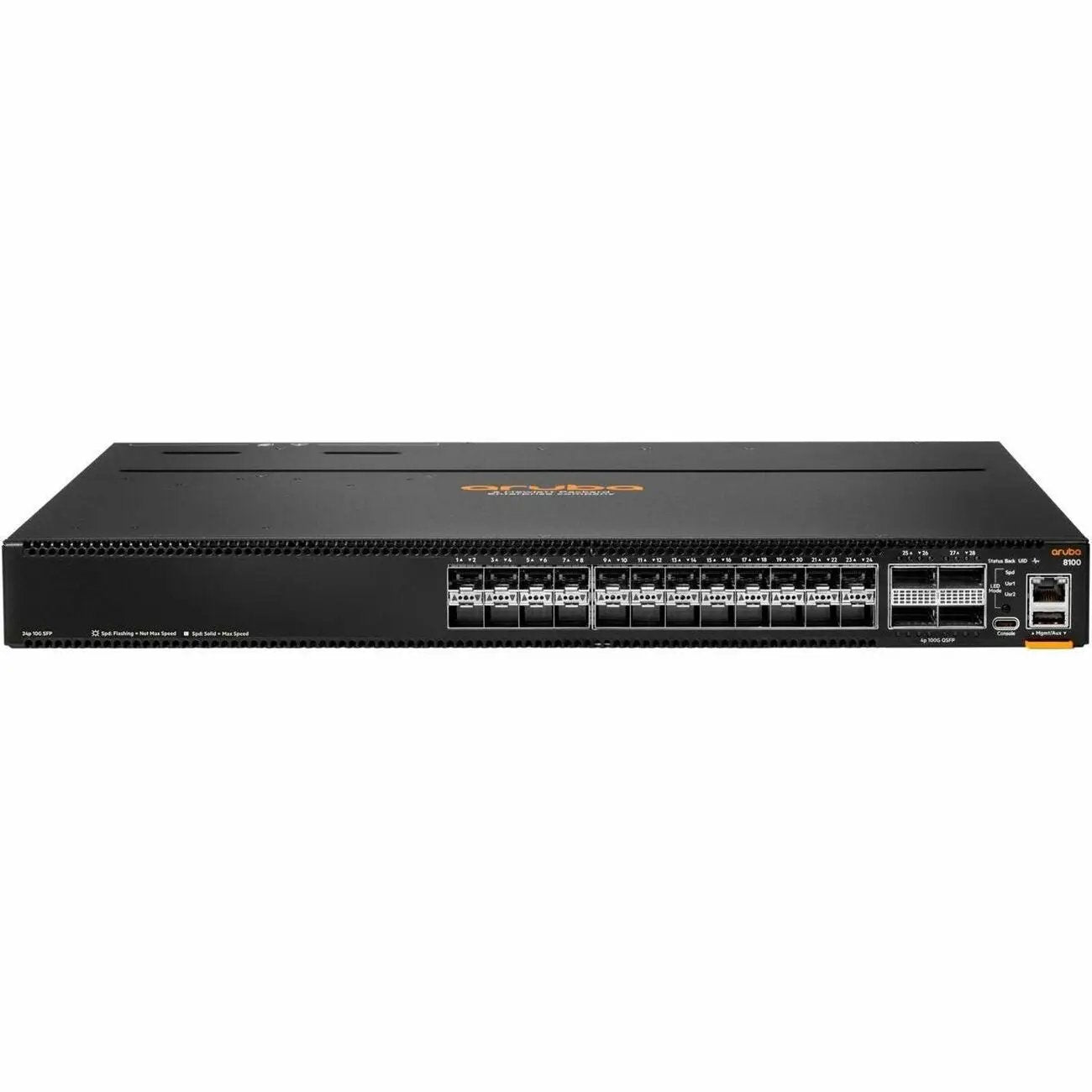

The Aruba CX 8100-24XF4C is a high-density 1U core and aggregation switch for campus and data-center networks. It provides 24 x 10G SFP+ ports with 4 x 40/100G QSFP28 uplinks, backed by ArubaOS-CX and cloud-ready Aruba Central management. With up to 1.76 Tbps switching capacity, line-rate performance, and dynamic segmentation, it powers scalable, secure networks for mobile, IoT, and cloud workloads.
Tech Specs
- Ports: 24 x 10G SFP+
- Uplinks: 4 x 40/100G QSFP28 (4 x 10G and 4 x 25G breakouts supported)
- Switching Capacity: Up to 1.76 Tbps
- Performance: Line-rate on 10G/40G/100G ports
- Switching Layer: Layer 3 routing
- Operating System: ArubaOS-CX
- Management: Cloud-based Aruba Central; supports on-premises management
- Features: Dynamic Segmentation, QoS, IP multicast, high availability, Network Analytics Engine

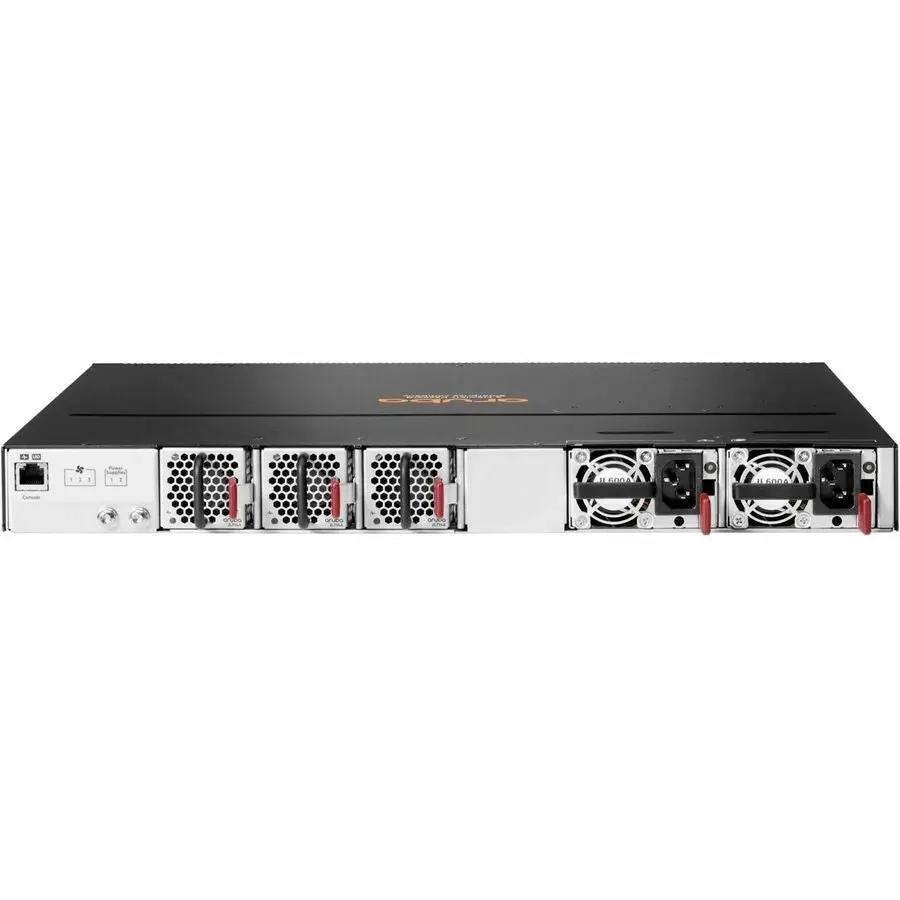

- Power Supplies: 2 x AC (230 V AC)
- Power Consumption: 375 W
- Cooling: Front-to-back airflow
- Form Factor: 1U rack-mountable
- Weight: 17.99 lb
Warranty & Compliance
- Warranty: Limited Lifetime
- Compliance: TAA compliant, RoHS
What's in the Box
- CX 8100 24XF4C Ethernet Switch
- 3 x Fans (JL714A)
- 2 x AC Power Supplies (JL600A)
