The TRENDnet 28-Port Gigabit Switch, model TEG-30262, delivers high bandwidth performance, ease of use, and reliability for business networks. This switch features four dedicated 10G SFP+ fiber ports for high-speed network connections, offering a cost-effective solution for adding 10G link capability to SMB networks. It is housed in a sturdy metal enclosure with included rackmount brackets, making it well-suited for 19” 1U rack installations. The fanless design ensures the switch operates silently, lowering energy consumption and eliminating operating noise, ideal for quiet office environments.
Core Product Highlights
-
Multi-Gig Ports: Equipped with 24 Gigabit RJ-45 ports and 4 dedicated 10G SFP+ fiber ports for high-speed connections.
-

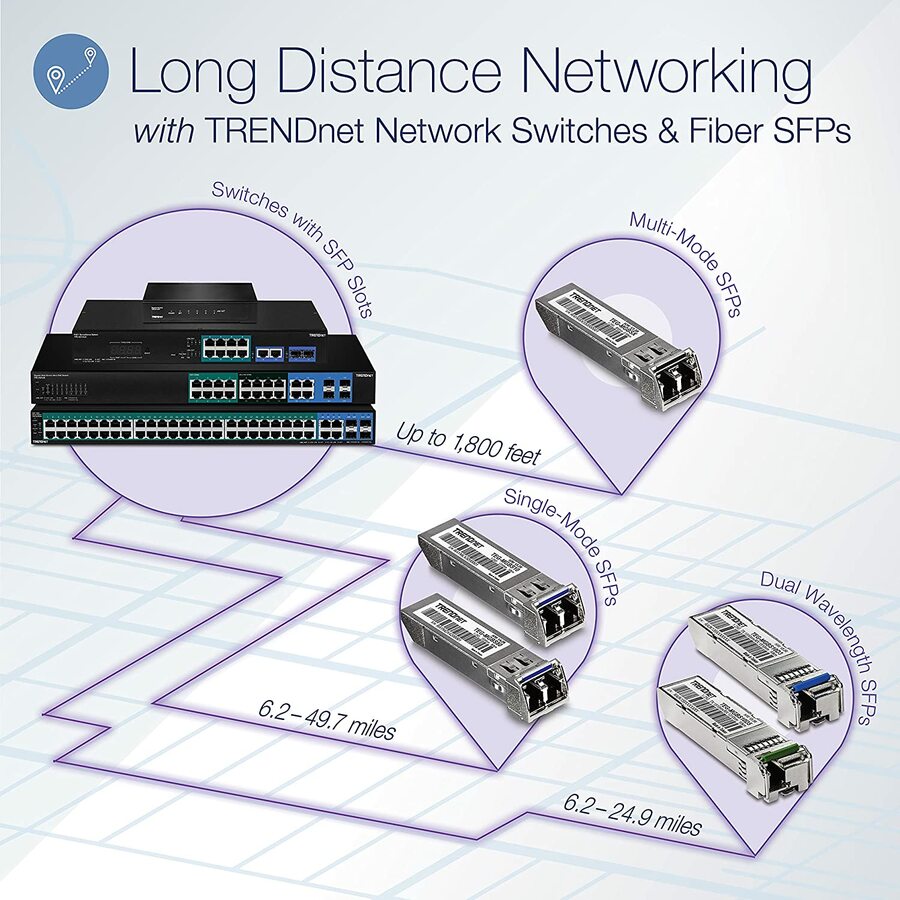

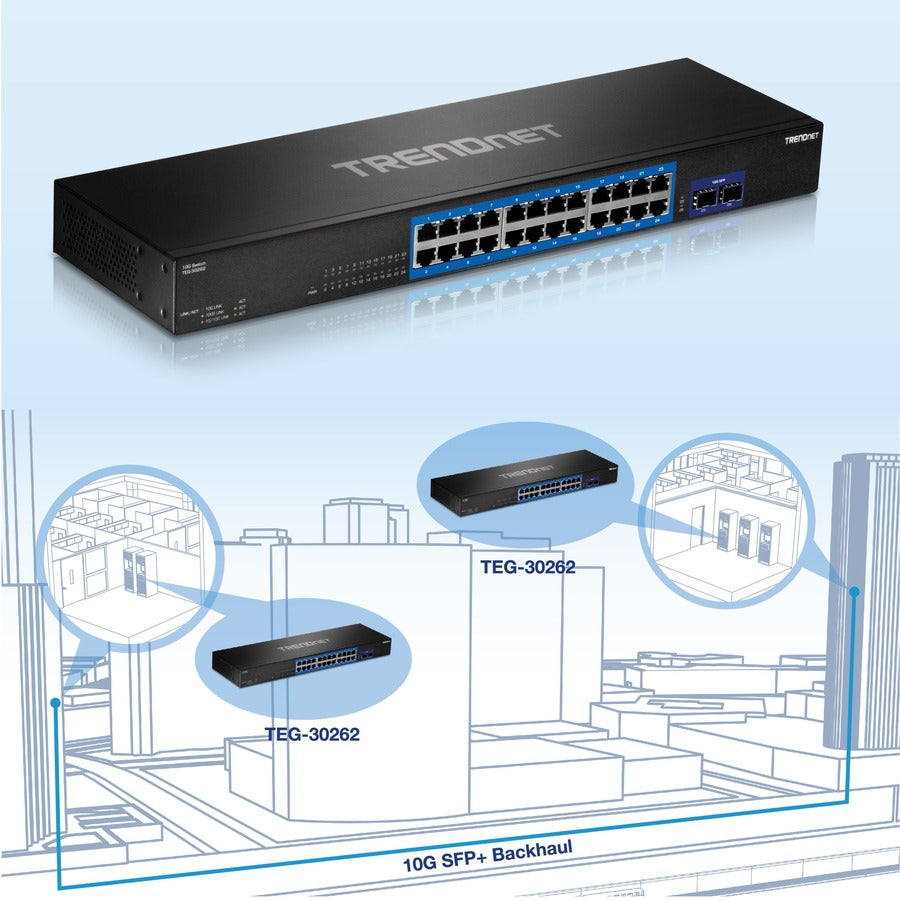

10G SFP+ Ports: Four dedicated 10G ports provide cost-effective high-speed uplink capability.
-
Switching Capacity: Offers a powerful 128Gbps switching capacity to support smooth data traffic flow.
-
Fanless Design: Operates silently and reduces energy consumption, perfect for noise-sensitive environments.
-
Rackmount Ready: Comes in a sturdy metal housing with rackmount brackets included for 1U rack installation.
-
Jumbo Frame Support: Supports Jumbo Frames up to 12KB for increased performance.
Tech Specs
-
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3az.
-
Device Interface:
-
24 x Gigabit ports
-
4 x 10G SFP+ ports
-

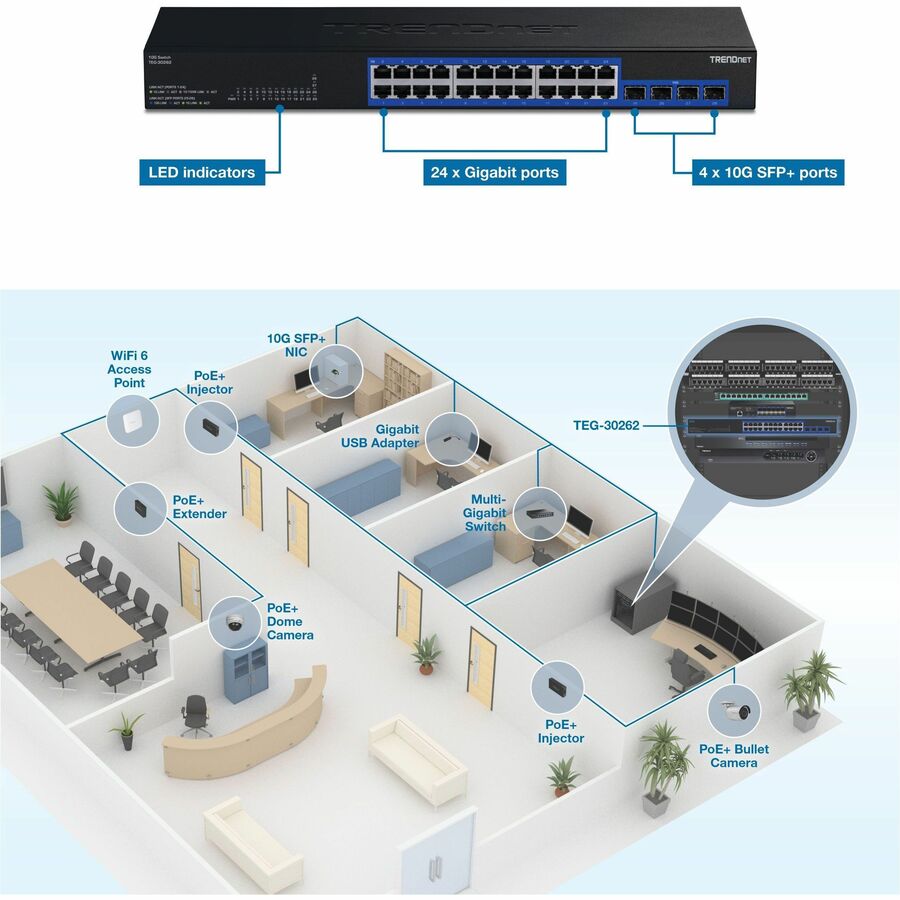

LED indicators
-
Data Transfer Rate:
-
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
-
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
-
Gigabit Ethernet: 2Gbps (full duplex)
-
Gigabit SFP: 2Gbps (full duplex)
-
10G SFP+: 20Gbps (full duplex)
-
Performance:
-
Switching Capacity: 128Gbps
-
RAM Buffer: 1.5MB
-
MAC Address Table: 16K entries
-
Forwarding Rate: 95.2Mpps (64-byte packet size)
-
Jumbo Frames: 12KB
-
VLAN Passthrough: Supported
-
Power: Input: 100 – 240V AC, 50/60Hz, internal power supply.
-
Max. Consumption: 18.9W
Physical Characteristics
-
Housing: Metal, Rack mountable (1U)
-

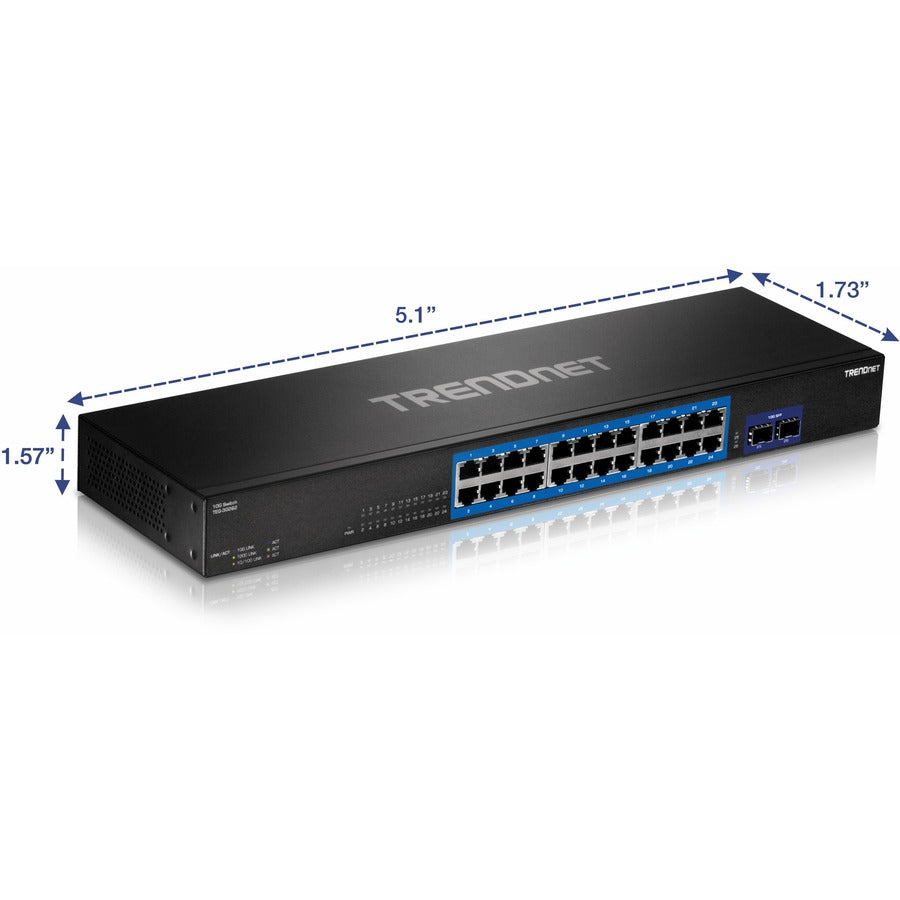

Dimensions: 441 x 131 x 44mm (17.3 x 5.1 x 1.73 in.)
-
Weight: 1.935kg (4.27 lbs.)
-
Operating Temperature: 0 – 40 degrees C (32 – 104 degrees F)
-
Operating Humidity: Max. 90% non-condensing
What's in the Box?
-
TEG-30262 Switch
-
Rackmount kit
-
Power cord (1.8m/6 ft.)
Warranty & Peace of Mind
-
Warranty: Lifetime Warranty (for metal-enclosed network switches purchased in US/Canada).
-
Cooling Fan/Power Supply: Carry a one-year warranty.
-
Certifications: CE, FCC, ETL.
-
Compliance: NDAA / TAA compliant (U.S. and Canada only).
