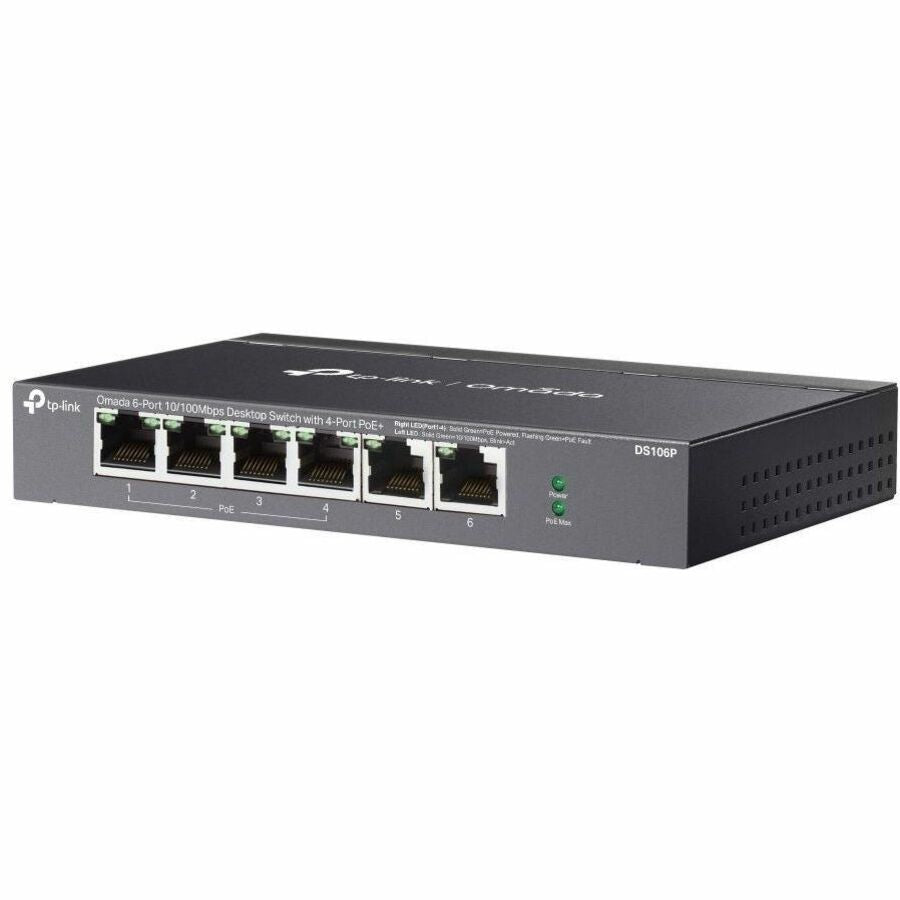

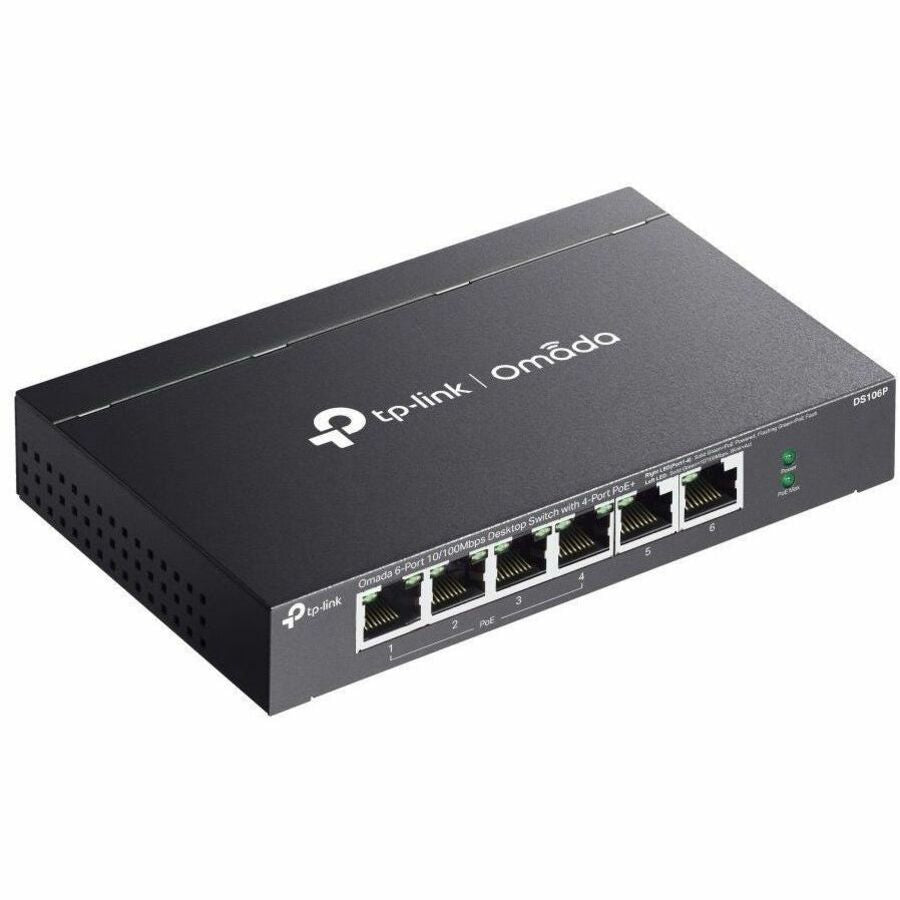

TP-Link DS106P: Professional Surveillance Switching Made Simple
The TP-Link DS106P is a specialized 6-Port Desktop Switch designed to meet the robust demands of SMB surveillance and networking. With four dedicated PoE+ ports, it simplifies deployments for IP cameras, access points, and IP phones by transmitting both data and power over a single cable.
Extended Reach & Reliability Overcome standard distance limitations with the built-in Extend Mode, which pushes data and power transmission up to 250 meters—perfect for deploying cameras in large areas without extra extenders. To ensure your critical surveillance footage is never interrupted, the Priority Mode prioritizes traffic on ports 1 and 2, guaranteeing video quality even during network congestion.
Intelligent Power Management The DS106P features PoE Auto Recovery, a smart self-healing function that automatically detects and reboots dropped or unresponsive PoE devices, ensuring stable operation without manual intervention. With a substantial 67 W PoE power budget, it supports high-power devices compliant with 802.3af/at standards.
Plug and Play Simplicity Designed for ease of use, this unmanaged switch requires no software installation or complex configuration. Its fanless metal casing ensures silent operation and durability, making it an ideal choice for noise-sensitive environments like offices and retail spaces.
Core Product Highlights
-
Dedicated PoE+ Ports: Features 4 PoE+ ports (Ports 1-4) that transfer data and power on individual cables, compliant with IEEE 802.3af/at standards.
-
Long-Range Transmission: Supports up to 250m data and power transmitting range under Extend Mode, ideal for surveillance camera deployment.
-
Traffic Prioritization: Priority Mode on ports 1–2 ensures high-priority quality for sensitive applications like video and voice monitor data.
-
Auto-Healing Network: PoE Auto Recovery guarantees stable operation by automatically rebooting unresponsive or dropped PD devices.
-
Robust Power Budget: Supports up to 30 W of power for each PoE port and a total system power budget of 67 W.
-

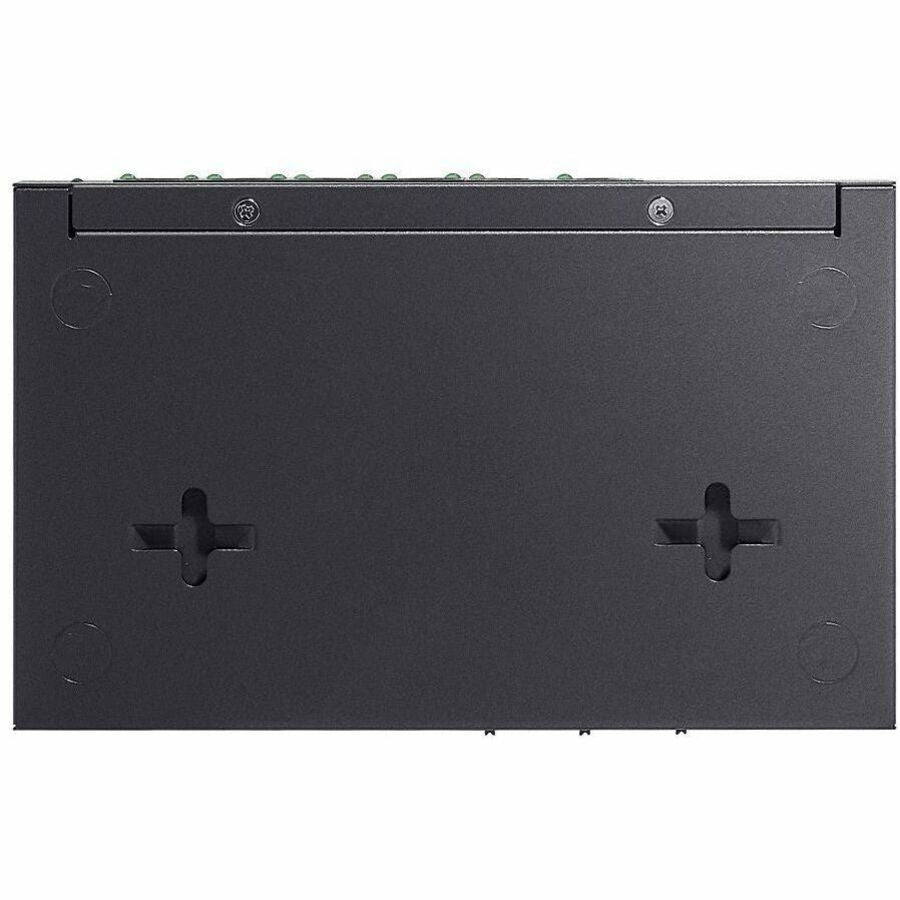

Silent Operation: Fanless design ensures quiet operation, suitable for desktop or wall-mounted use in quiet environments.
Tech Specs
-
Interface: 6 x 10/100 Mbps RJ45 Ports (Ports 1–4 support PoE+)
-
PoE Standards: IEEE 802.3af/at compliant
-
Switching Capacity: 1.2 Gbps
-
Packet Forwarding Rate: Store-And-Forward
-
Mac Address Table: 2K
-
PoE Power Budget: 67 W Total (Up to 30 W per port)
-

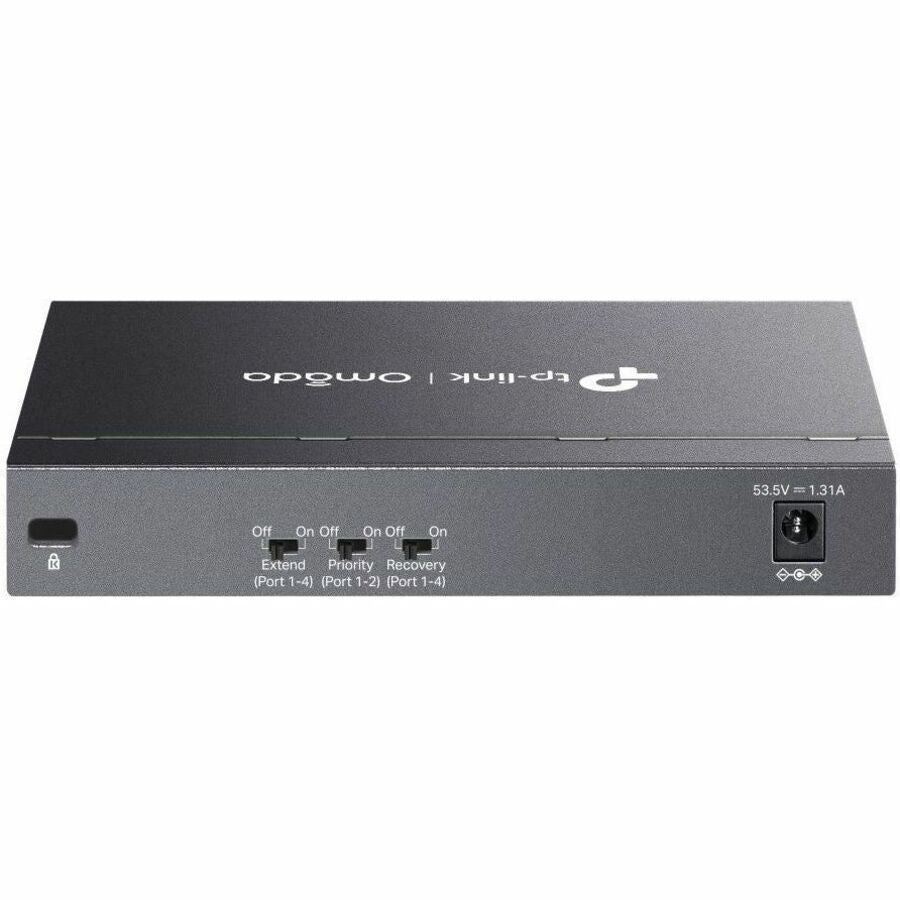

Advanced Features: Extend Mode (Up to 250m), Priority Mode (Ports 1-2), PoE Auto Recovery (Ports 1-4)
-
Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
-
LED Indicators: Power, Link/Act, PoE Status, PoE Max
Physical Characteristics
-
Dimensions: 158 mm x 101 mm x 25 mm (6.2 in x 4.0 in x 1.0 in)
-
Fan Quantity: Fanless
-
Max Power Consumption: 2.52 W (no PD connected); 75.4 W (with 67 W PD connected)
-
Max Heat Dissipation: 8.59 BTU/h (no PD connected); 257.11 BTU/h (with 67 W PD connected)
-
Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
-
Operating Humidity: 10% to 90% RH, non-condensing
What's in the Box?
-
TP-Link DS106P Switch
-
Power Adapter
-
Installation Guide
