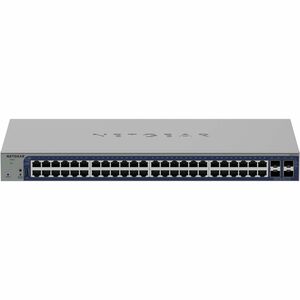

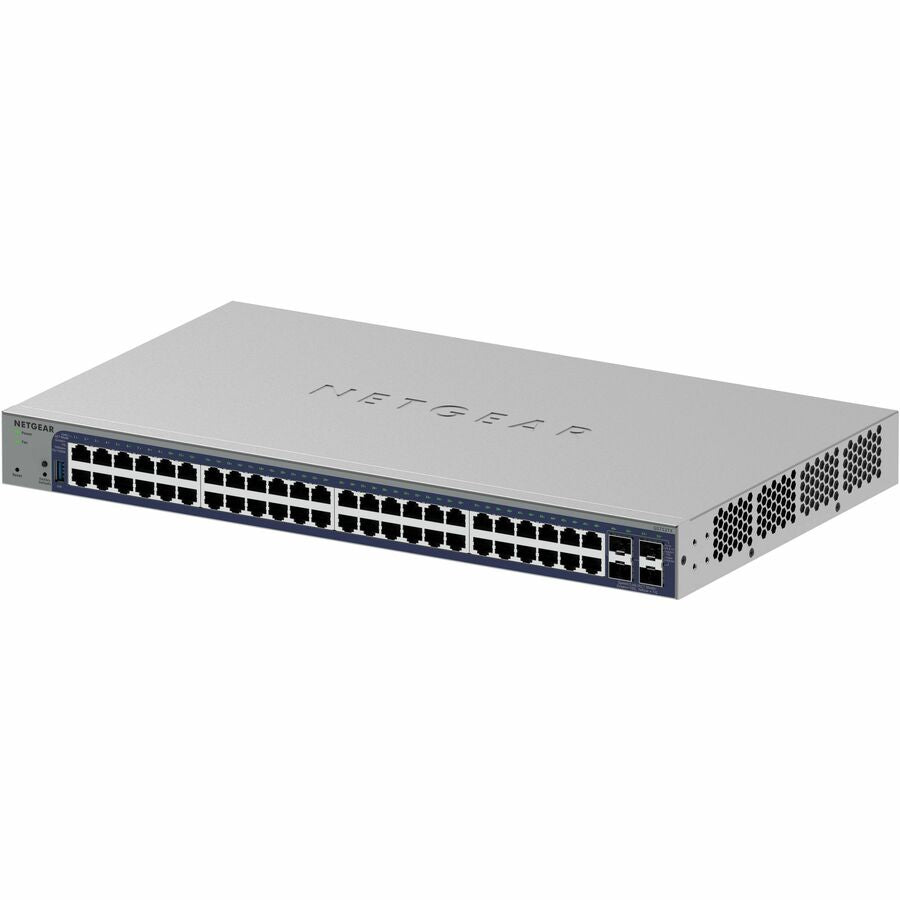

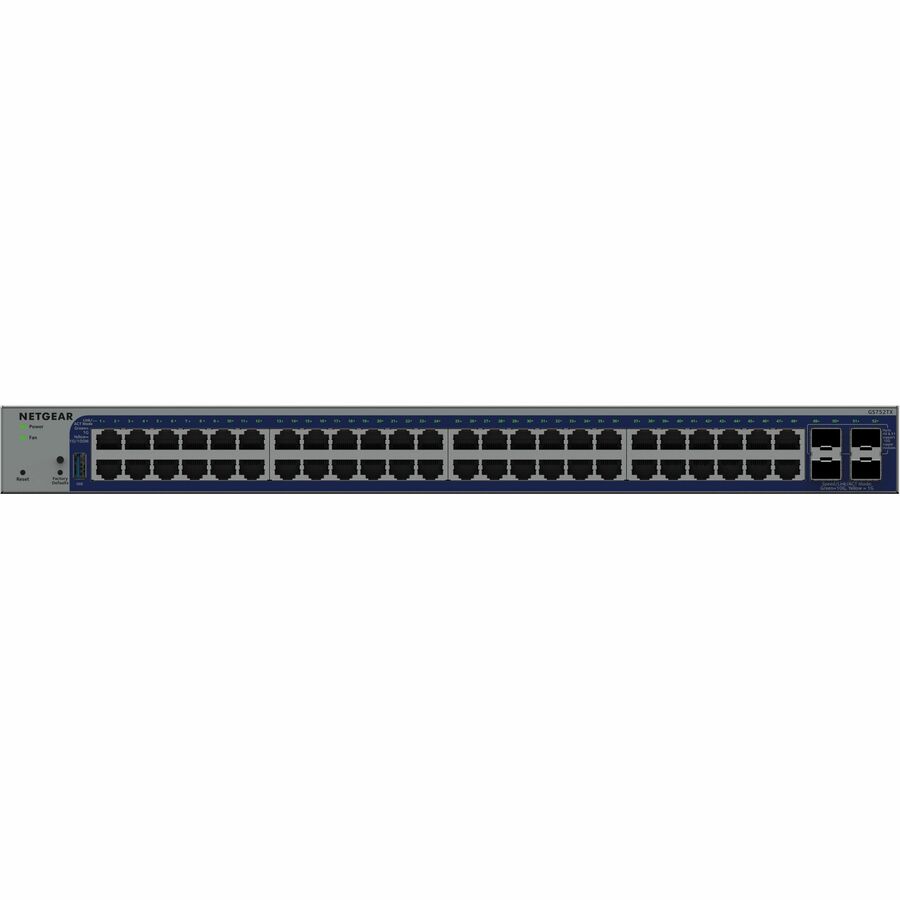

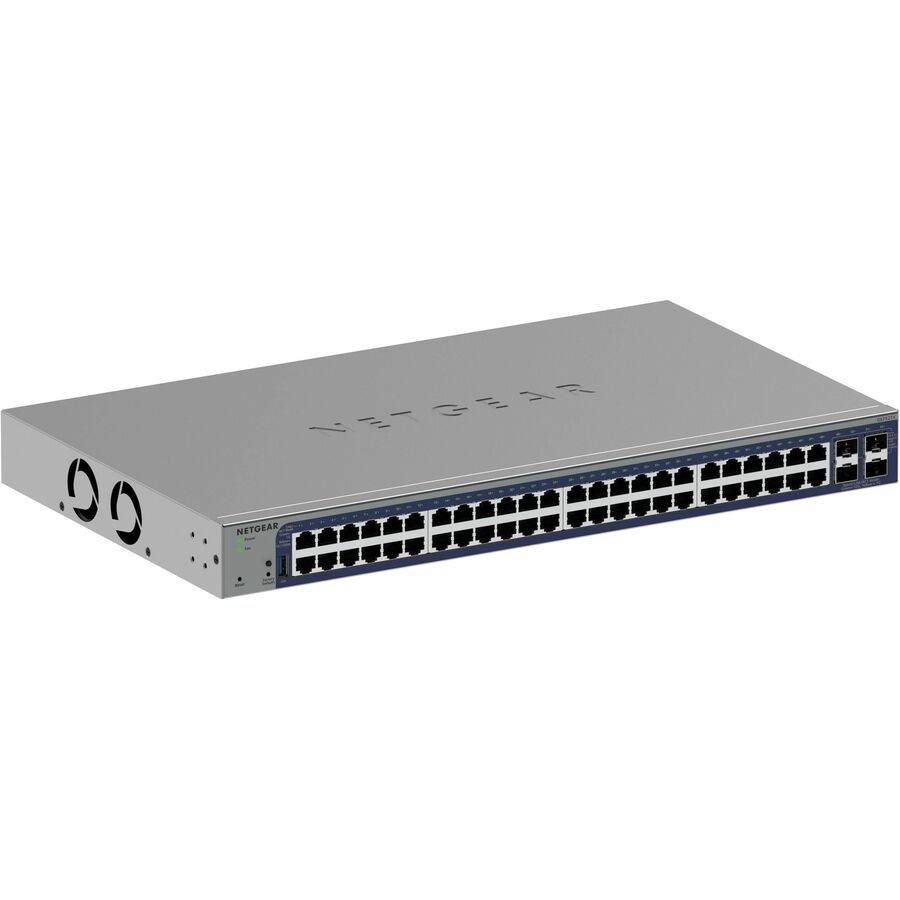

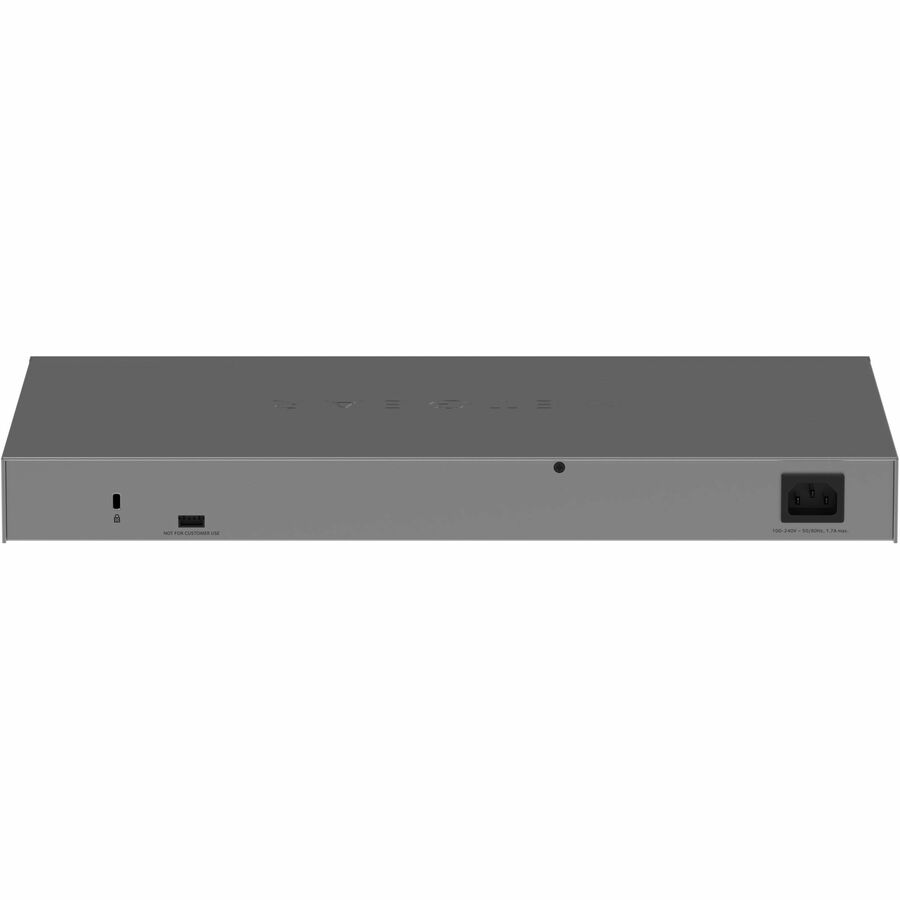

he Netgear GS752TX-300NAS (GS752TXv3) is a 48-Port Gigabit Smart Managed Switch designed to provide a powerful and cost-effective network engine for small and medium-sized businesses. As part of the S350 Smart Switch series with Cloud Management, it offers configurable L2 network features like VLANs and QoS, making it easy to deploy VoIP phones, IP cameras, and wireless access points securely. This switch features 4 dedicated 10G SFP+ ports for high-speed fiber uplinks, providing uplink redundancy and failover to improve network reliability. It can be managed remotely via the NETGEAR Insight Cloud management platform, allowing for simpler configuration and deployment from anywhere.
Core Product Highlights
-
Powerful Connectivity: Features 48 Gigabit Ethernet ports and 4 dedicated 10G SFP+ fiber ports for high-speed uplinks and aggregation to the network core.
-
Remote/Cloud Management: Insight Cloud Management option allows for instant activation and management from the web GUI or mobile app, eliminating the need for additional hardware.
-
Advanced L2+/L3 Lite Features: Includes IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, and Multicast VLAN Registration.
-
Robust Security: Offers advanced security features such as 802.1x authentication, ACL filtering, Port-based security by locked MAC, and Dynamic ARP inspection.
-
Quiet Operation: Designed with temperature- and load-based fan-speed control to minimize system acoustic noise, making it suitable for rack mounting in quiet environments.
-
Future-Proof Networking: Supports comprehensive IPv6 management, QoS, and routing to ensure investment protection and smooth migration to IPv6-based networks.
Tech Specs
-
Model: GS752TXv3 (GS752TX-300NAS)
-
Form Factor: Rack mount, Desktop
-
10M/100M/1G RJ-45 Copper Ports: 48
-
10G SFP+ (Fiber) Ports: 4 (Dedicated)
-
Processor: 800MHz ARM A55 Single Core
-
Packet Buffer Memory: 1.5 MB (Dynamically shared)
-
Bandwidth: 176 Gbps
-
MAC Address Table: 16K Entries
-
VLANs: 256
-
ACLs: 100 shared (Ingress)
-
Jumbo Frame Support: Up to 10K packet size
-
Forwarding Rate: 130.94 Mpps
-
Power Consumption: 43W (Max)
-
Fans: 2 Internal Fans (Fixed)
Physical Characteristics
-
Dimensions (W x D x H): 440 x 257 x 43 mm (17.3 x 10.1 x 1.7 in)
-
Weight: 3.53 kg (7.78 lb)
-
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
-
Acoustic Noise: 32.5 dBA (at 25 degrees C)
What's in the Box?
-
NETGEAR Smart Switch (GS752TXv3)
-
AC Power cord (with C13 connector)
-
Brackets and screws for rack mounting
-
Rubber footpads for tabletop installation
-
Rubber protection caps (installed in SFP sockets)
-
Installation guide
Warranty & Peace of Mind
-
Warranty: Limited Lifetime Hardware Warranty.
-
Support: 90-days Free 24x7 Advanced Technical Phone Support.
-
Replacement: Limited Lifetime Next-Business-Day (NBD) Replacement.
