D-Link DGS-1026P: Powerful Connectivity for Growing Businesses
The D-Link DGS-1026P 26-Port Gigabit Unmanaged PoE Switch offers an economical and high-performance solution for Small-to-Medium Businesses (SMB) and SOHO environments. Designed to deliver superior network speeds while minimizing energy consumption and noise, this switch allows you to take full advantage of Gigabit Ethernet performance.
Gigabit Connectivity & Versatility Bring the speed of Gigabit Ethernet to all your connections. The DGS-1026P ensures a truly high-speed network, accommodating a mix of legacy and modern interfaces with ports that support standard Ethernet, Fast Ethernet, and Gigabit Ethernet. It features 24 Gigabit Ethernet ports for fast network speeds and backwards compatibility, along with 2 SFP uplink ports for fiber connectivity.
Improved Network Efficiency Simplify your network management with advanced efficiency features. The switch incorporates Flow Control to throttle connections during heavy usage, reducing packet loss and wasteful data retransmission. Additionally, Storm Control and Port Isolation mitigate broadcast storms caused by rogue software, ensuring your network communication remains uninterrupted.

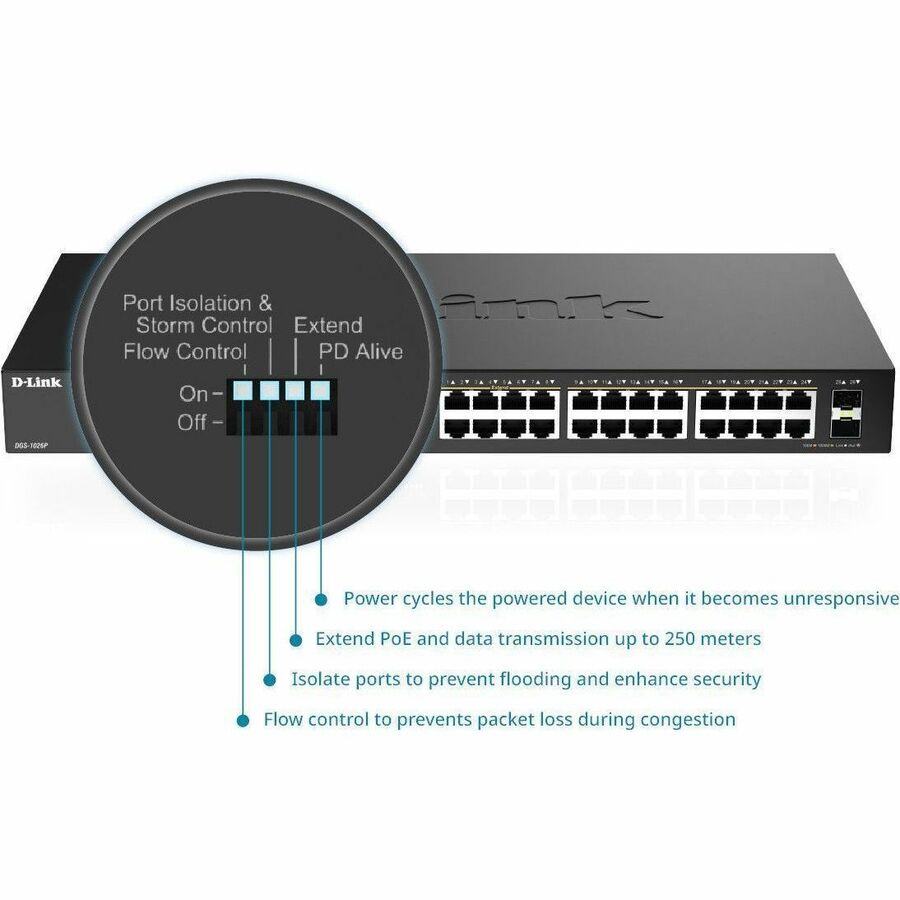

Innovative & User-Friendly Design Adapt quickly to your network needs with the built-in DIP switch, allowing for easy onsite configuration of flow control, port isolation, and extend mode without accessing a web UI. Enclosed in a durable, compact metal case, the DGS-1026P includes a smart fan design for improved heat dissipation and is rack-mountable, making it ideal for businesses with demanding requirements.
Green Technology Conserve energy automatically without sacrificing performance. The DGS-1026P utilizes Link Status detection to power down unused ports and Energy-Efficient Ethernet (EEE) to dynamically reduce power consumption during low data activity.
Core Product Highlights
-
Application Versatility: Built-in DIP switch allows easy configuration and quick adjustment of application settings (Flow Control, Port Isolation, PD Alive, Extend Mode) without needing a web UI.
-
Power over Ethernet: Increased PoE capability with support for IEEE 802.3af/at to power more devices with greater port density.
-
Flexible Connectivity: Features 24 x 10/100/1000Mbps PoE ports and 2 x 100/1000Mbps SFP uplink ports.
-
Adequate Power Budget: Total PoE budget of 240 Watts, with each port supporting up to 30 Watts.
-
Smart Efficiency: Features a smart fan that adjusts speed based on system requirements for better acoustic performance and less power loss.
-
Intuitive Monitoring: Real-time feedback on the power consumption of PoE-powered devices.
Tech Specs
-
Interface: 24 x 10/100/1000Mbps PoE ports, 2 x 100/1000Mbps SFP uplink ports
-
PoE Standards: IEEE 802.3af/at PoE Standard
-
Switching Capacity: 52 Gbps
-
Transmission Method: Store-and-forward
-
Packet Buffer: 4.1 Mb
-
Jumbo Frames: 9216 Bytes
-
Maximum Forwarding Rate: 38.69 Mpps
-
PoE Power Budget: 240 W (Up to 30W per port for Ports 1 to 24)
-
LED Indicators: Power (Per unit), Activity/Link and Speed (Per port), Power fail/Power OK (Per PoE port)
Physical Characteristics
-
Dimensions: 441.0 mm x 210.0 mm x 44 mm (17.36 in x 8.27 in x 1.73 in)
-
Weight: 3.182 kg (7.02 lbs)
-
Power Input: Internal AC input: 100 - 240 VAC, 50 - 60 Hz
-
Power Consumption: Maximum: 288.56 W; Standby: 15.967 W
-
Temperature: Operating: 0 to 50 degrees C (32 to 122 degrees F); Storage: -10 to 70 degrees C (14 to 158 degrees F)
-
Humidity: Operating: 10% to 95% RH non-condensing; Storage: 5% to 95% RH non-condensing
-
Heat Dissipation: 984.567 BTU/hr
-
MTBF: 426,692.94 Hours
What's in the Box?
Warranty & Peace of Mind
